SPECIFICATIONS



Brand Name: FLAMMA



Model Number: FS06

Certification: CE

Certification: FCC

Type: Guitar Preamp Effects Pedal

Power Supply: 9V DC

Current Draw: 300mA

Input: 1/4'' mono audio jack

Output: 1/4'' mono audio jack

Weight: 0.298KG

Dimension: 6.982*12.15*5.065cm

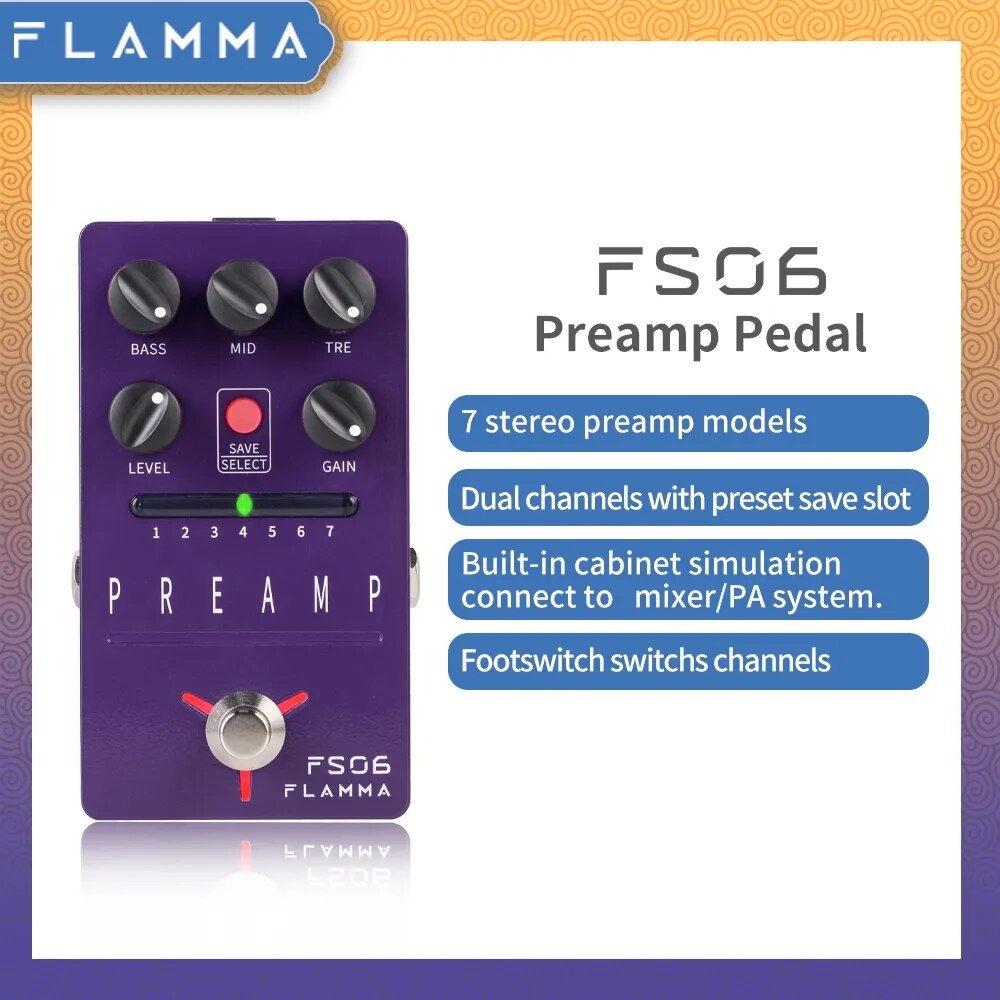

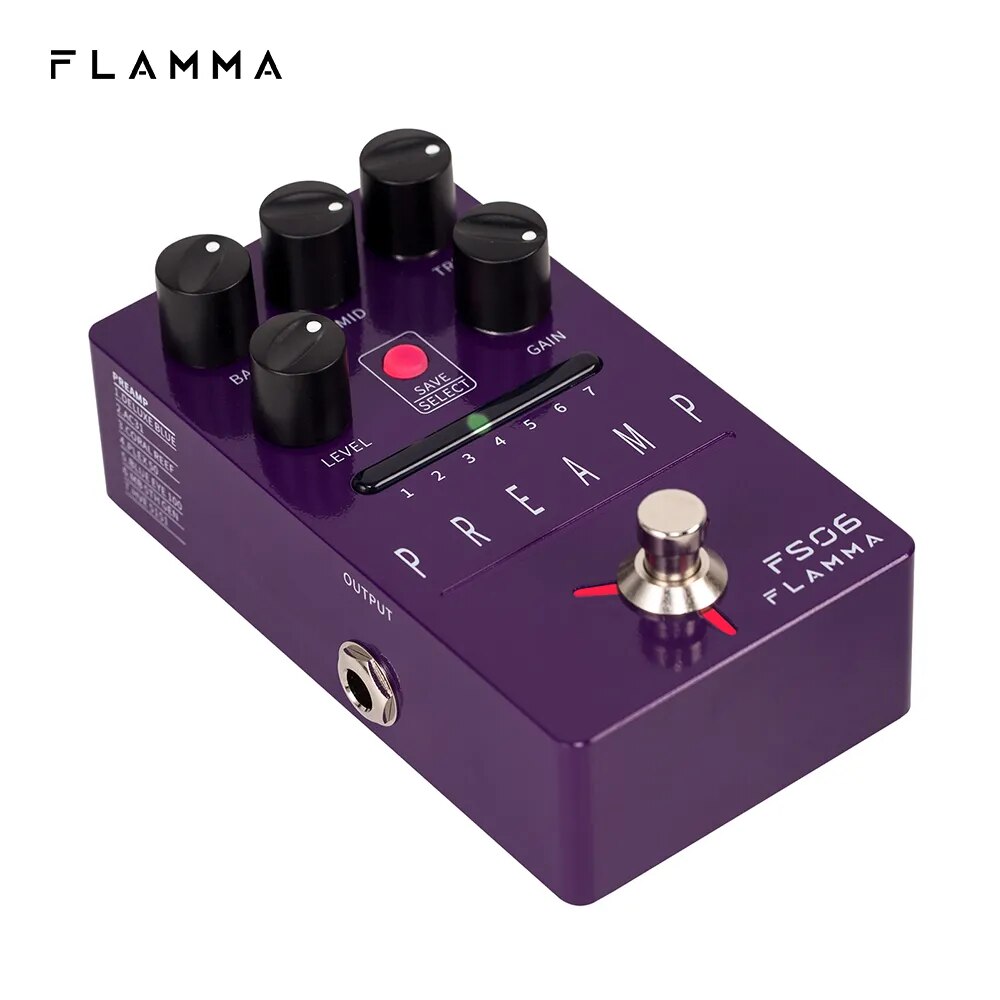

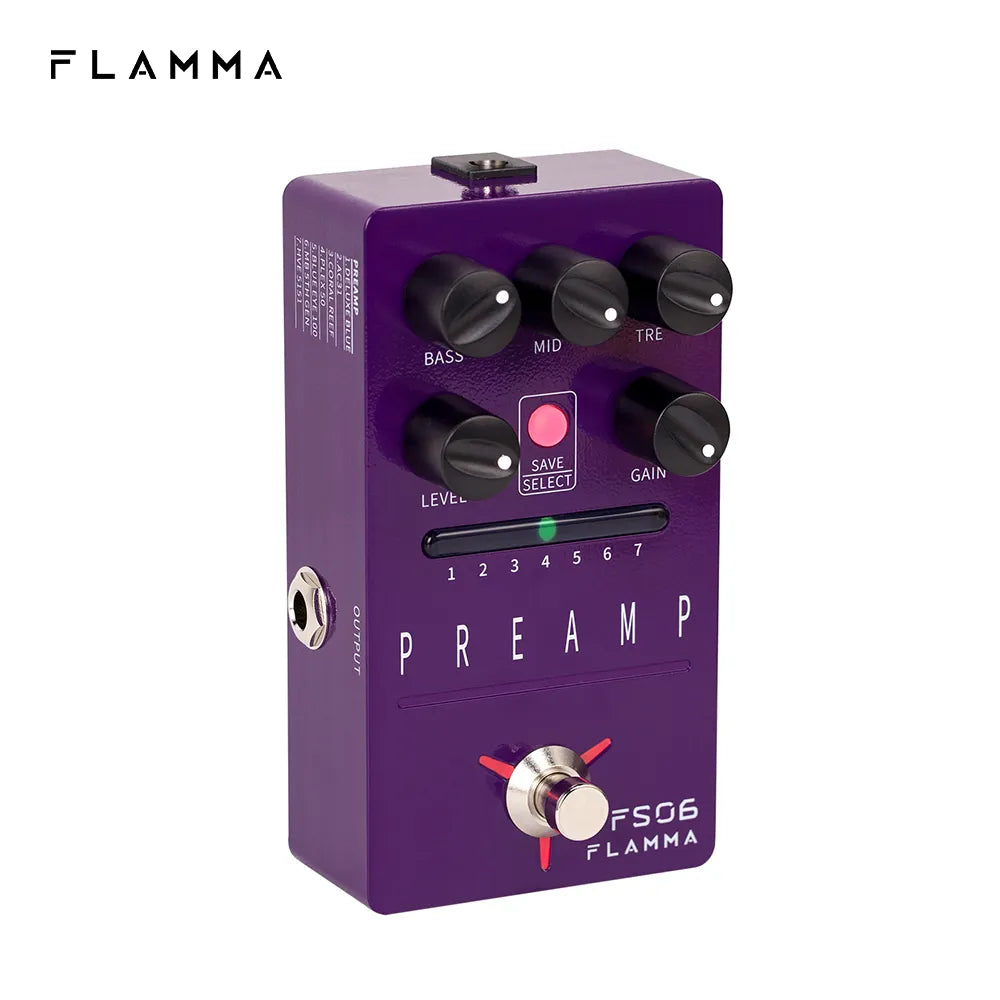

FLAMMA FS06 Preamp Pedal Preamp Pedal Digital Guitar Effects Pedal with 7 Preamp Models Preset Save Slot Built-in Cabinet Simulation

As with all Flamma pedals, focus is placed on offering high-quality, flexible tone options with a simple UI at an affordable price. Each preamp inside the FS06 features two channels that can be easily switched between. The built-in cabinet simulator can also be toggled on and off for when a real-life cab isn’t available and built-in EQ knobs allow easy adjustment of Bass, Mid, Treble, Gain, and Volume levels that can be saved to each channel’s preset slot. Two modes of operation are available for the footswitch, allowing it to be used as either an on/off switch or a channel selection switch.



Features

●7 different preamp models that cover a wide variety of classic and modern guitar tones.

●Each preamp model has two channels with preset save slot for each preamp.

●Built-in cabinet simulation allows users to connect directly to mixer/PA system.

●Footswitch can be used to switch channels or to toggle pedal ON/OFF.

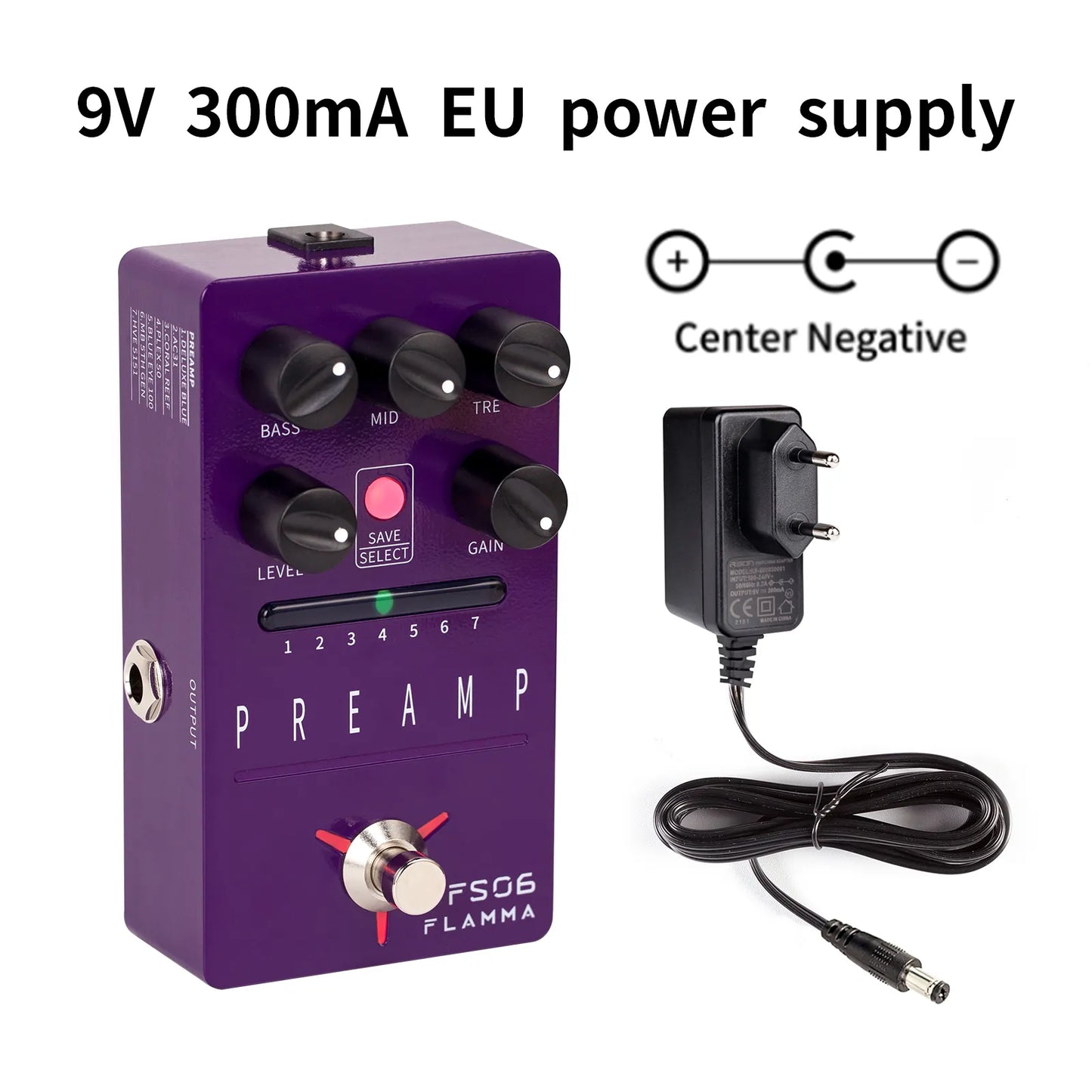

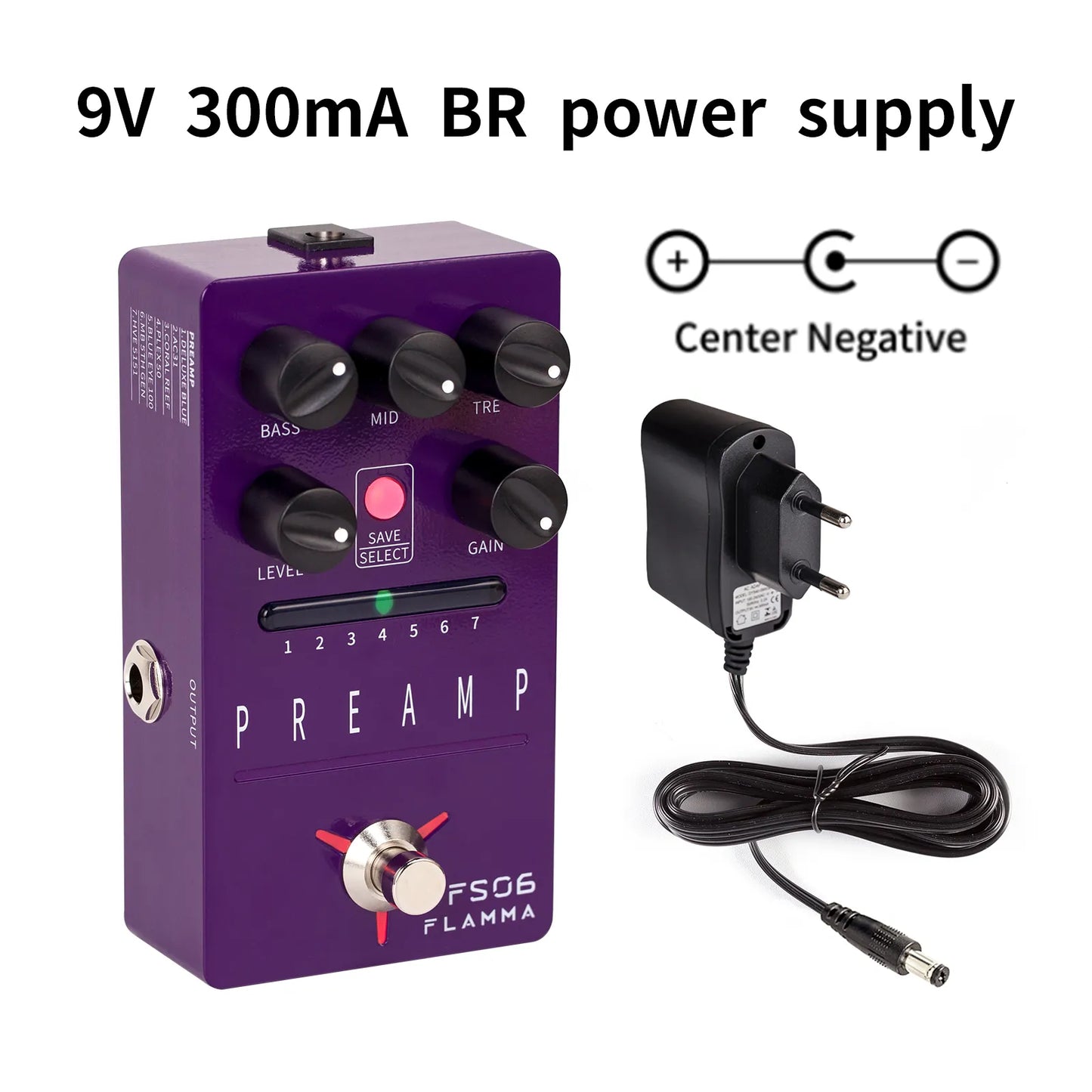

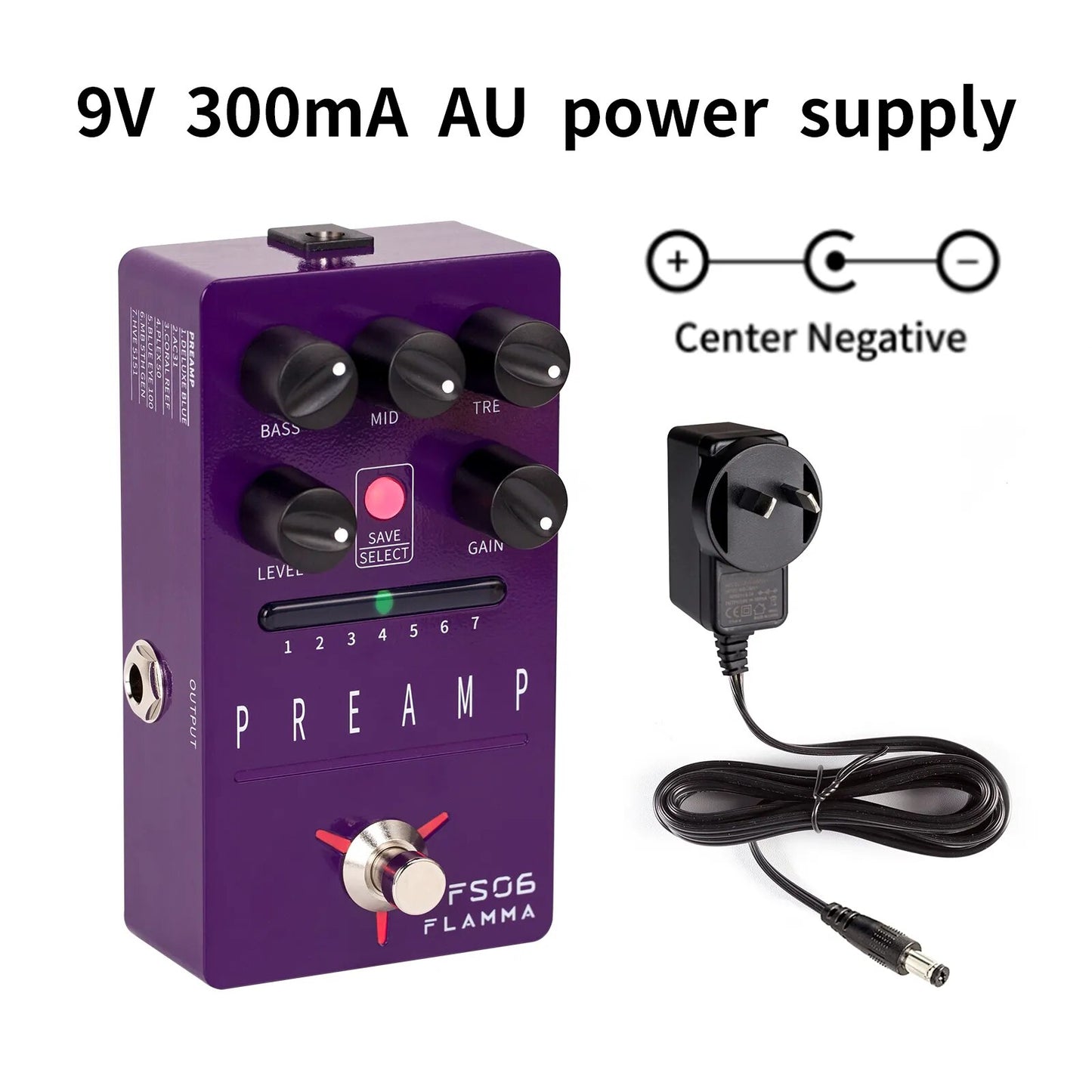

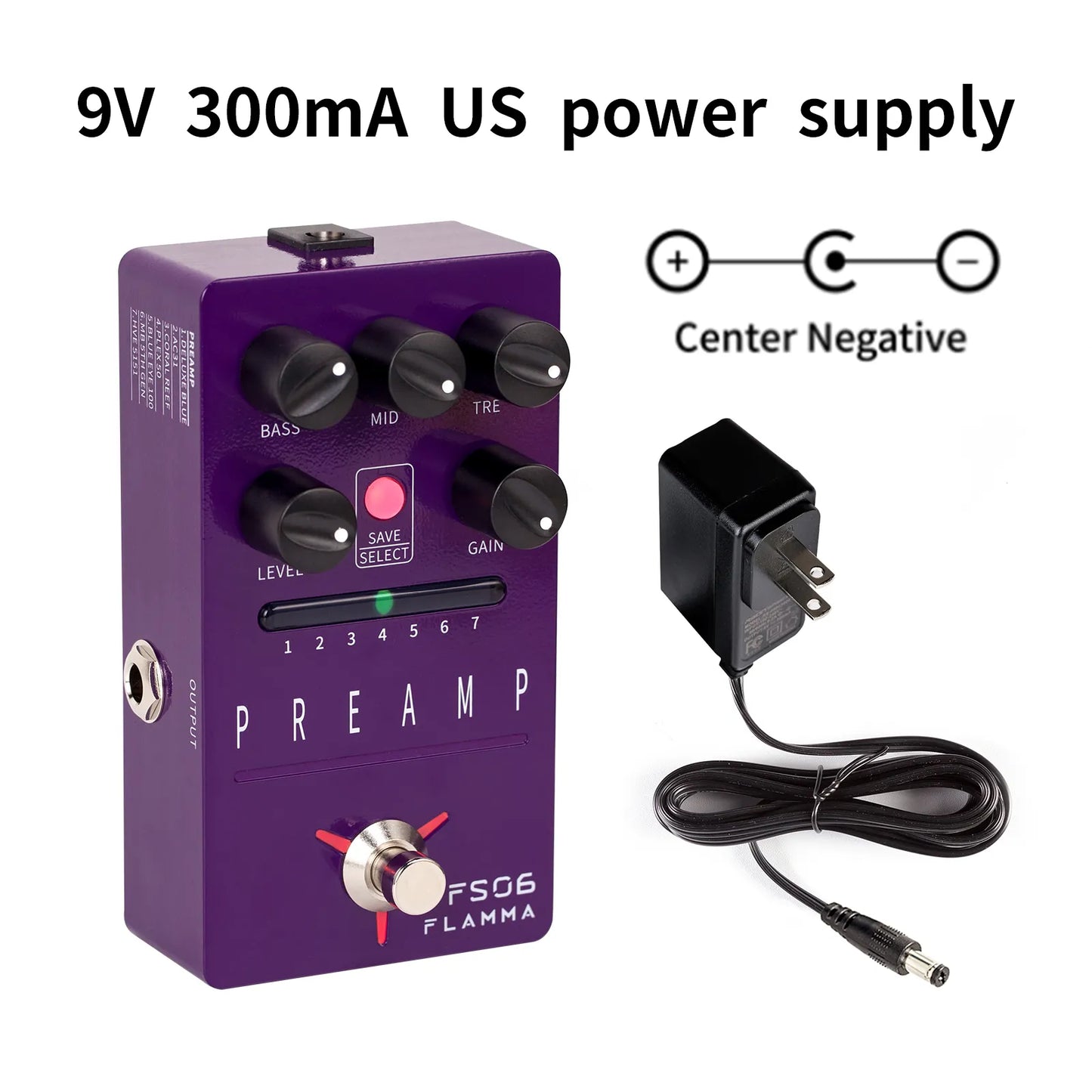

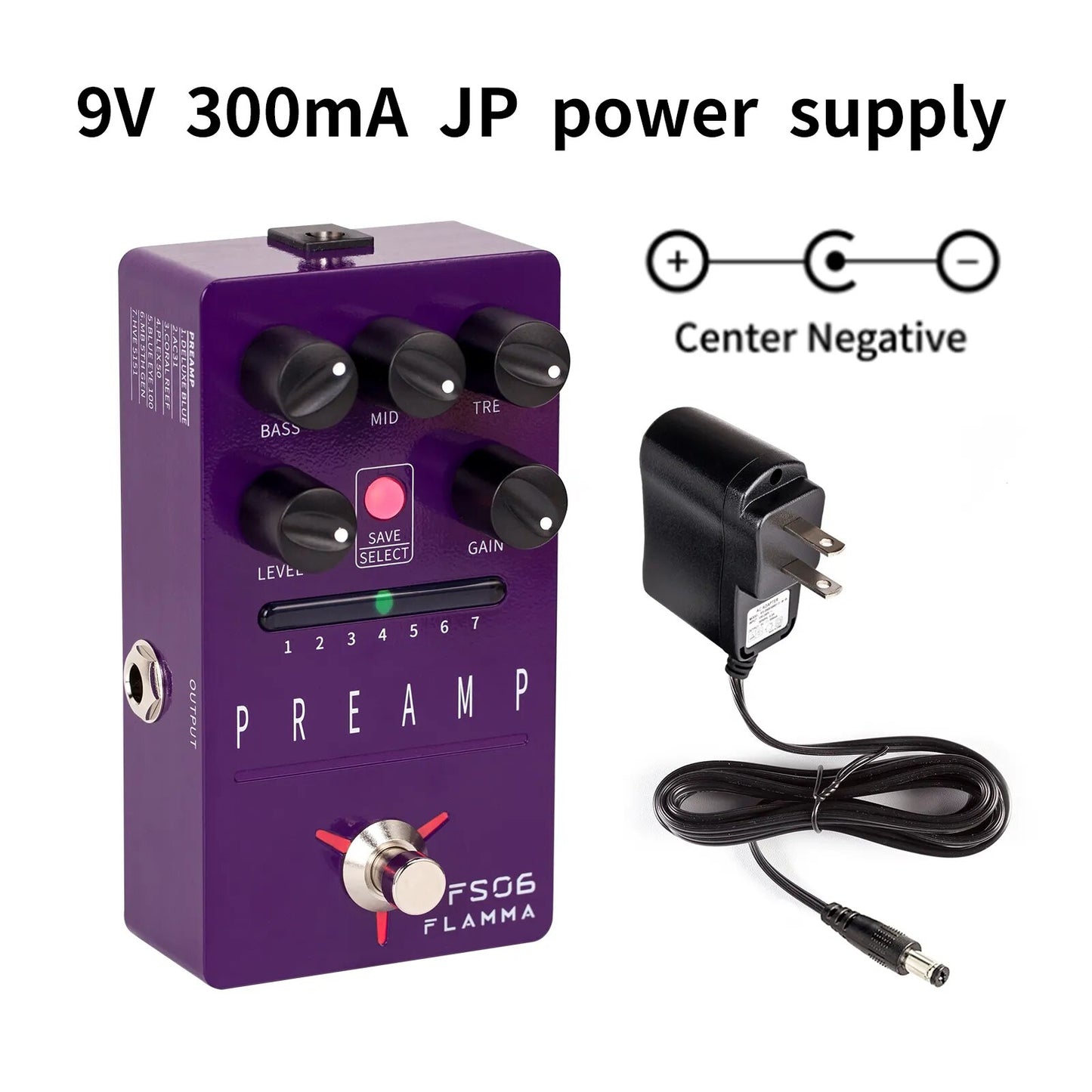

●Support 9V 300mA center negative power supply(the package doesn't included it ).

Please use isolated power supply with ９V and at least 210mA current value for the unit. Incorrect power supply may cause short-circuit and damage.



Package Included

1xFS06 Preamp Effects Pedal

1xSafety Instruction&Warranty Card

1xSticker

7 Preamp Models
Press the SAVE button to switch between 7 different preamp models. LED indicates currently selected effect (see above for description of preamp models)

Dual Channels with Preset Save Slot

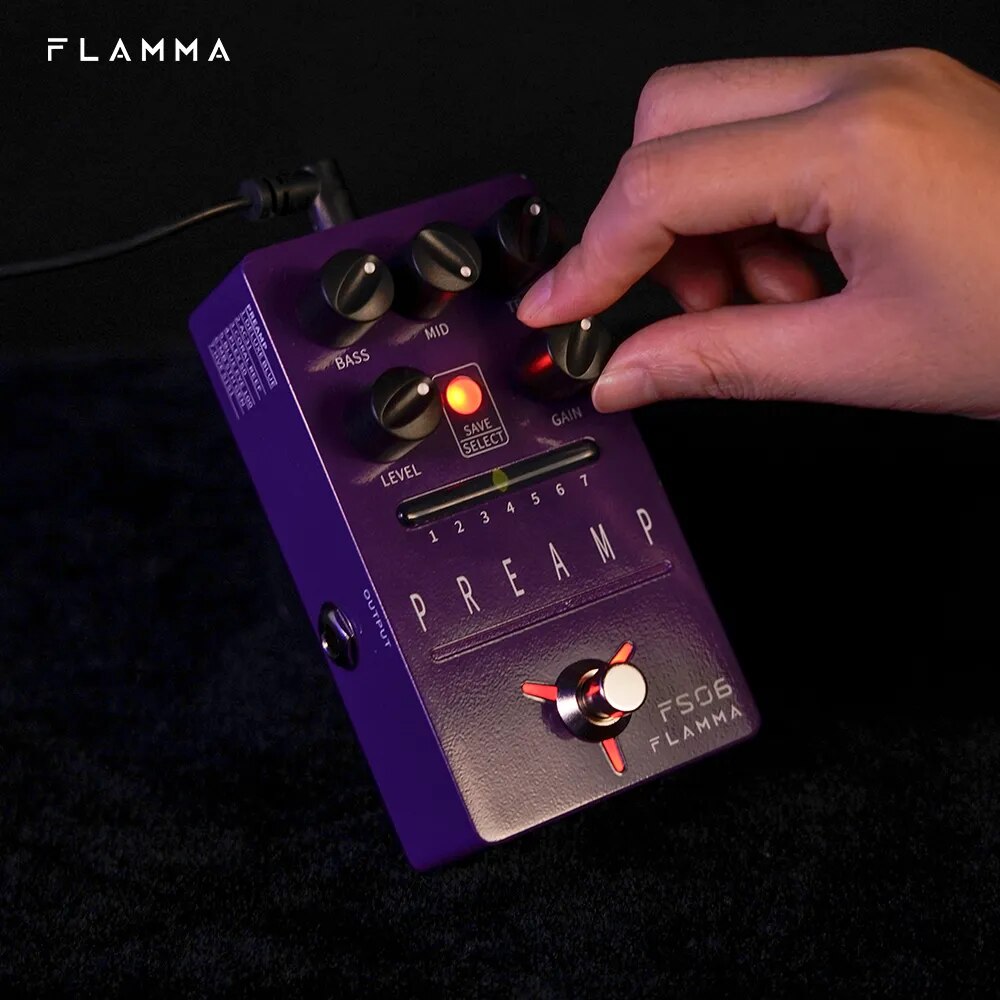

Rotate the BASS, MID, TRE, LEVEL, GAIN knobs to edit the tone of the currently selected preamp model. When any change is made from the saved preset, the LED indicator will blink slowly indicating the change has not yet been stored. Press and hold the SAVE button to save current settings. The LED will blink rapidly indicating save has been successful. Pressing SAVE button once will change to the next preamp model without saving.



Built-in Cabinet Simulation

Press the SAVE button and footswitch simultaneously to turn on/off the cabinet simulation. The footswitch LED will blink slowly when cab sim is on. The LED will not blink when the cab sim is off.











Dual Footswitch Modes

Users can switch between the two modes by pressing and holding the footswitch for just over 1 second. The footswitch LED will blink quickly, indicating the footswitch mode was toggled successfully.

In on/off mode, pressing the footswitch will turn the pedal on/off.

In channel mode,ressing the footswitch will change preamp channel.
