SPECIFICATIONS



Brand Name: FLAMMA

Model Number: FS02

Certification: CE

Certification: FCC

Type: Guitar Pedal Reverb Effects

Power Supply: DC. 9V 300mA Center negative

Dimensions: 69.82x121.5x50.65mm

Weight: 0.298KG

Input: 2*1/4"mono jack (Impedance value: 4.7M ohms

Output: 2*1/4"mono jack (Impedance value: 100 ohms)



FLAMMA FS02 Reverb Pedal Reverb Effects Stereo Electric Guitar Effects Reverb Pedal with True Bypass Storable Preset Trail On FunctionThis compact reverb pedal crams seven distinct digital reverb effects in to a sturdy, metal shell and several control features. The various reverb effects aim to simulate different environments from a small room to large, open cave. More niche effects are also included such as studio-style plate reverb, classic spring reverb effect, and the more far-out modulation reverb effect.



Features
●7 classic reverb effects

●High-quality stereo input and output

●Storable preset slot for each effect

●Trail On function allows effects to fade out naturally

●True bypass

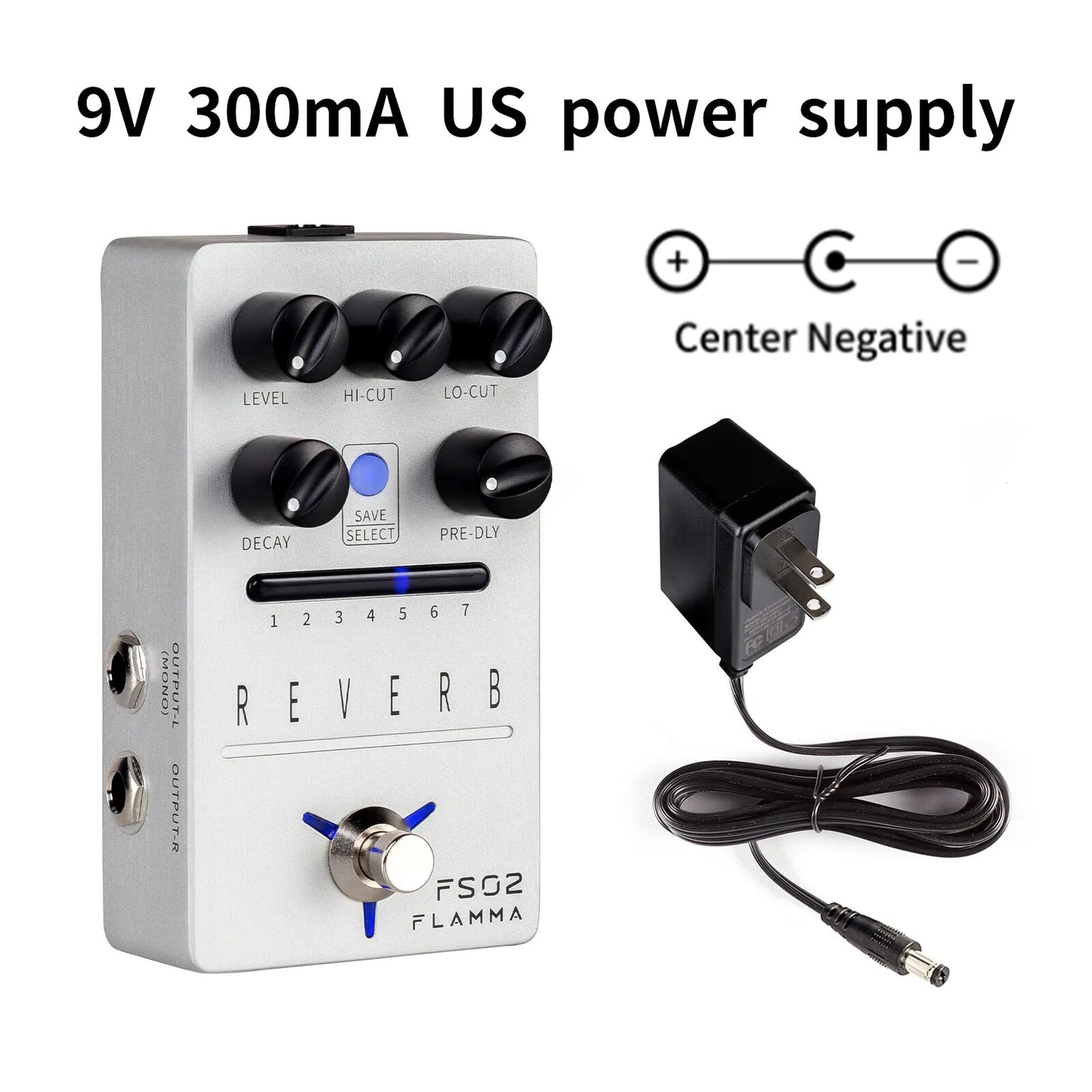

●Support 9V 300mA center negative power supply(the package doesn't included it ).
Please use power supply with ９V and at least 210mA current value for the unit. Incorrect power supply may cause short-circuit and damage.

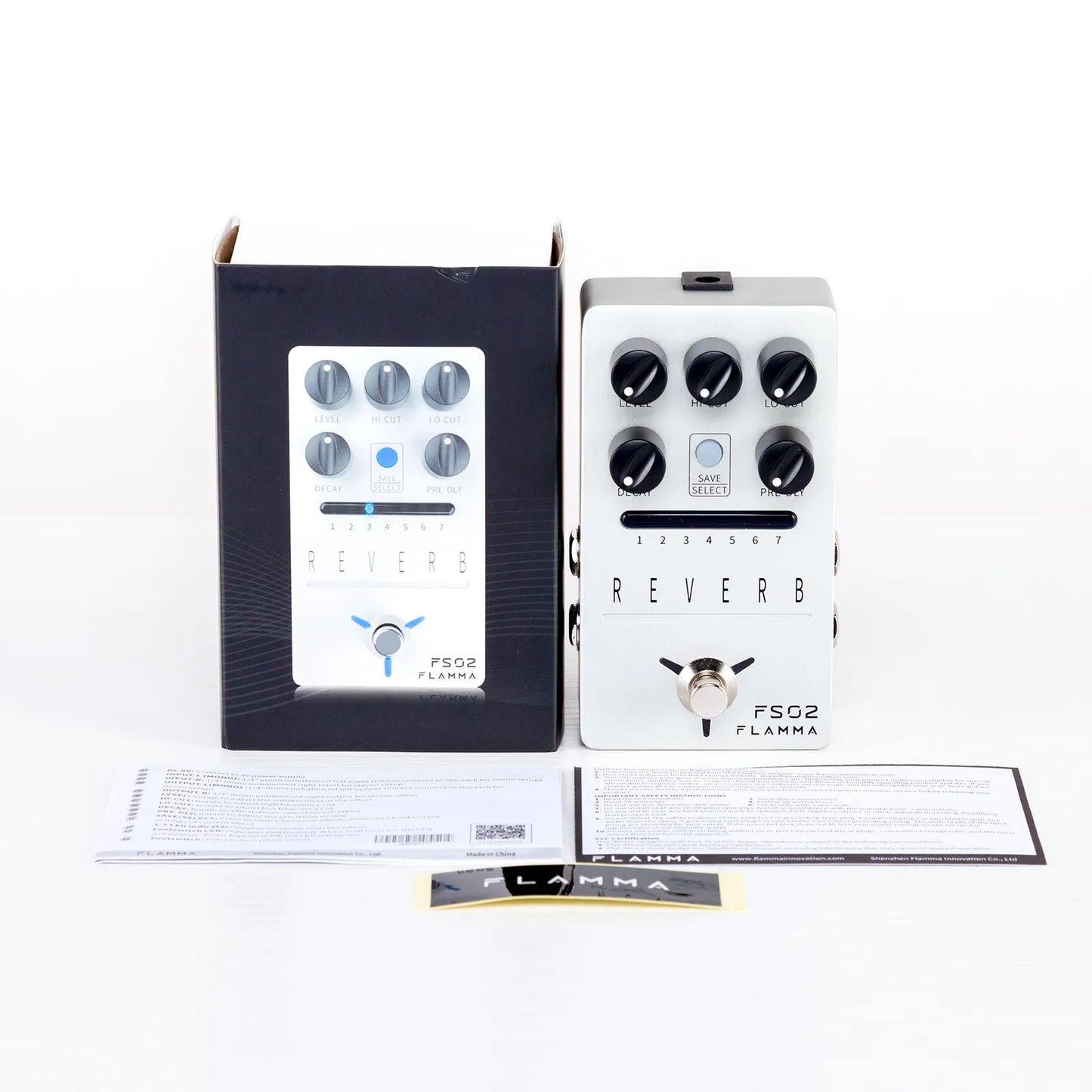

Package Included

1xFS02 Reverb Effects Pedal

1xSafety Instruction&Warranty Card

1xSticker

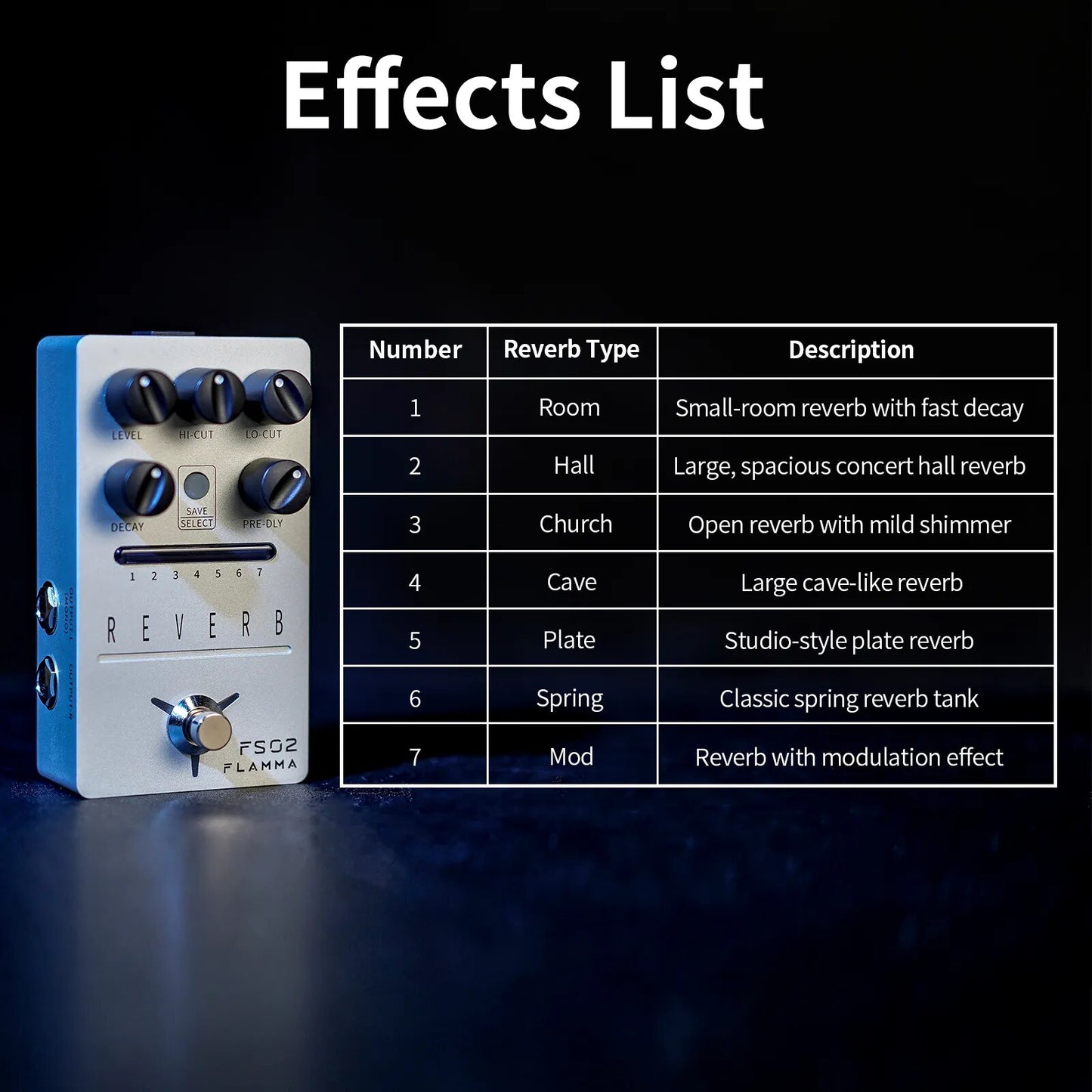

7 Reverb Effects

Plug in 9V power supply and press footswitch to turn pedal on.Press the SAVE button to switch between the 7 different reverb effects. LED indicates currently selected effect (see manual for description of effects).

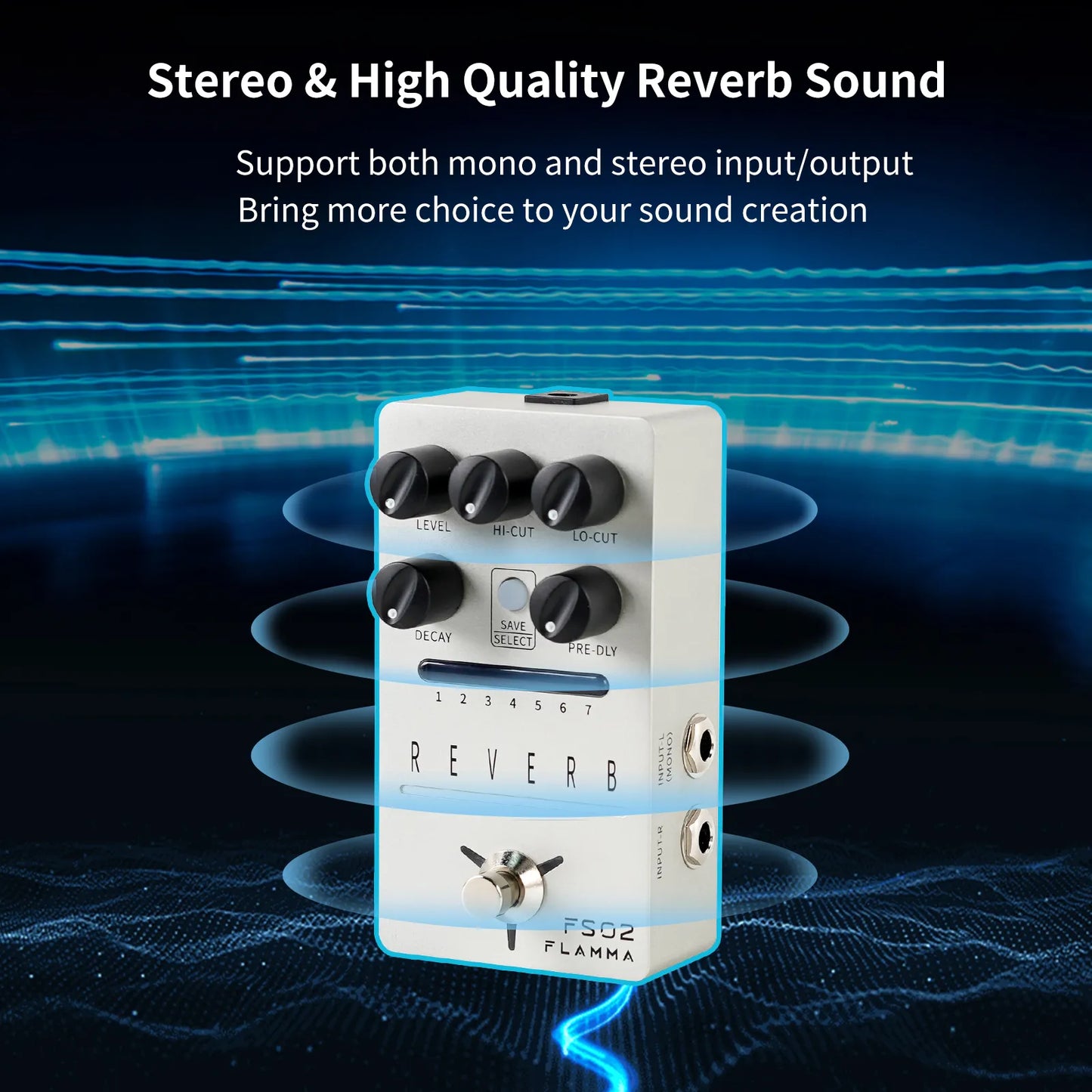

Stereo High Quality Reverb Sound

Support both mono and stereo input/output, bring more choice to your sound creation.

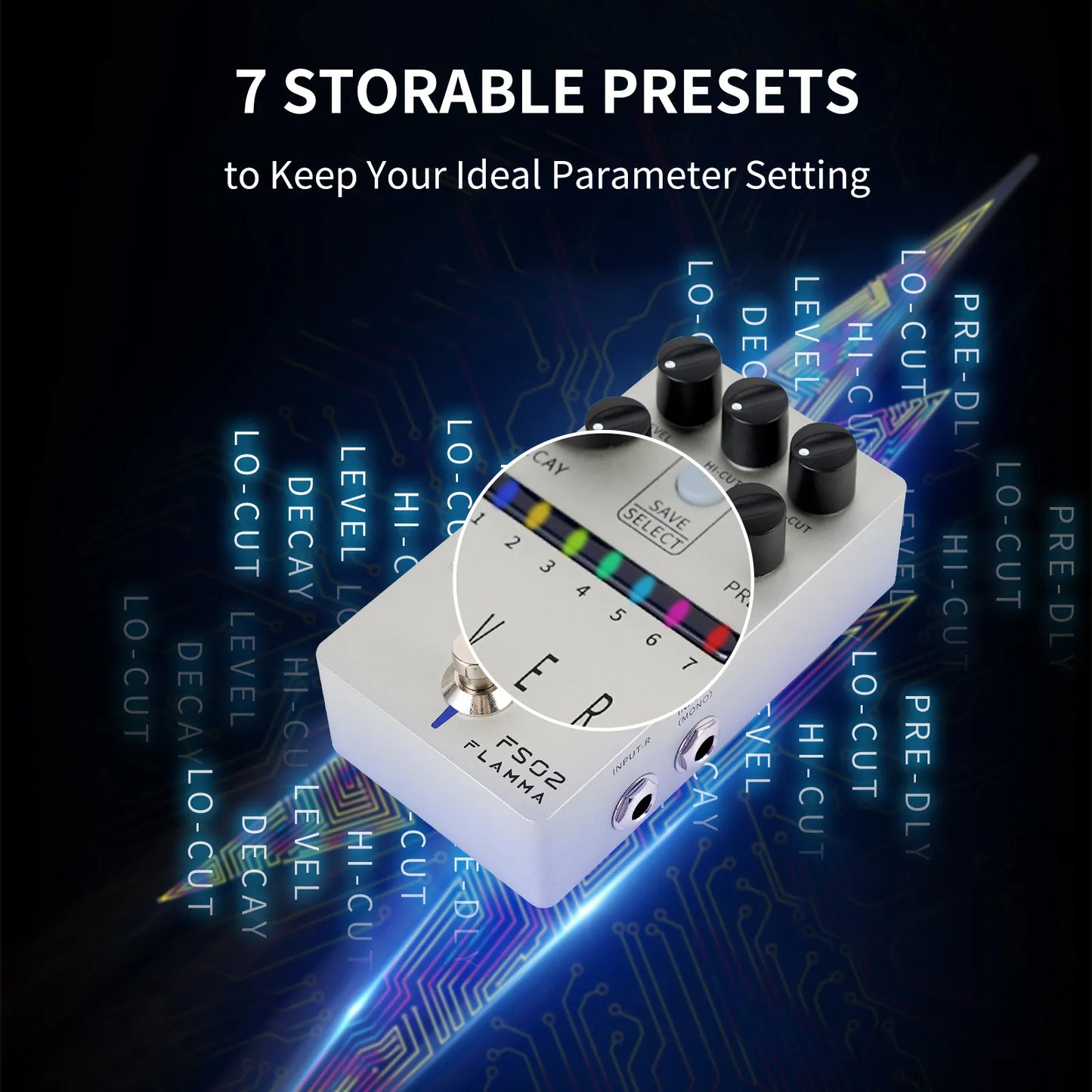

7 Storable Presets

Press and hold the SAVE button to save current settings. When any change is made from the saved preset, LED indicator will blink slowly indicating the change has not yet been stored. The LED will blink swiftly indicating saving is done successfully. Pressing SAVE button once quickly will change to the next effect without saving.







Trail On Function

Trail On allows effects to fade out naturally after being turned off. Power off pedal. Press and hold the footswitch while powering on the pedal to switch activate/deactivate Trail On function. SAVE button will turn blue when Trail On is active and red when Trail On is deactivated.
