SPECIFICATIONS



Brand Name: EYK

Model Number: IEM-81

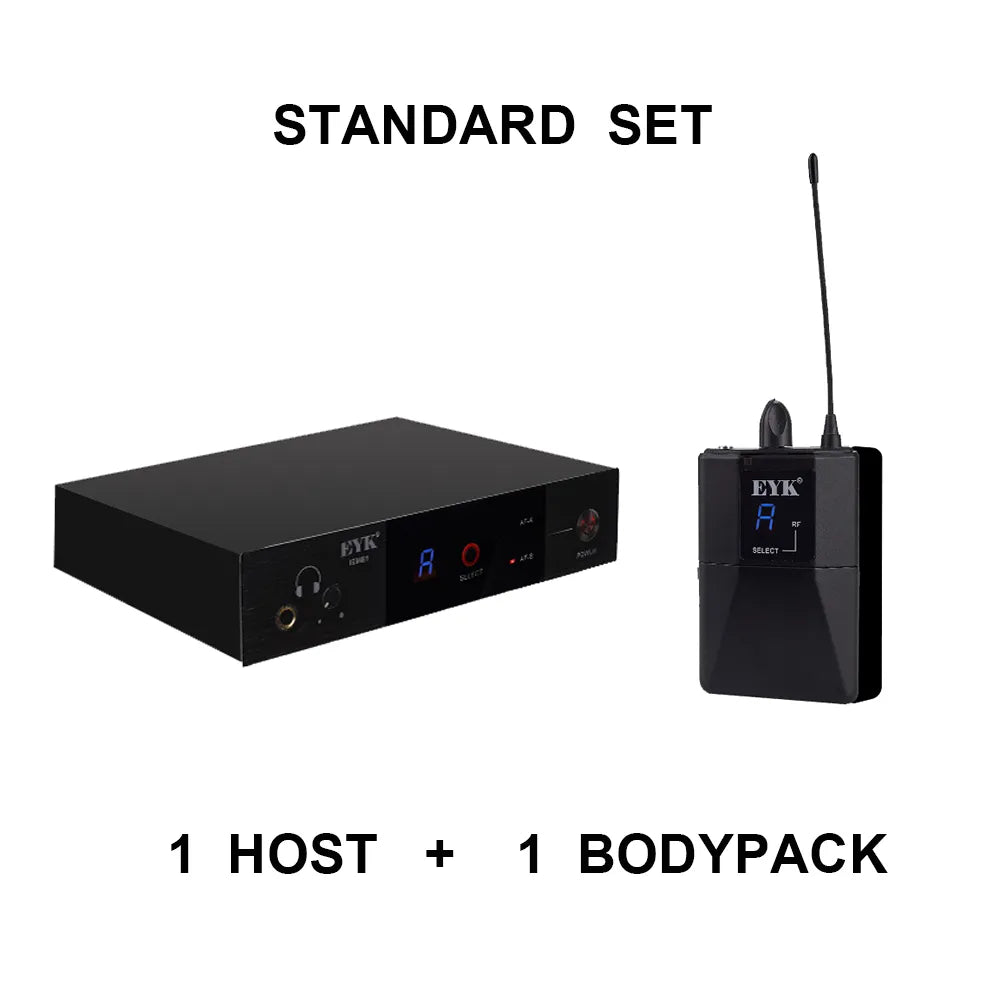

Bundle: Bundle 1

Type: In-Ear Monitoring

Certification: CE

Frequency Range: 600-690MHZ

Channels: 16

Style: Mono

Modulation Mode: Broadband FM

Channel Frequency: 300KHZ

Frequency stability: ±0.005%

Dynamic Bound: 100dB

Max Excursion: ±45KHz

Frequency response: 60Hz-18KHz +-3dB

S/N: >105dB

T.H. D: ≤0.5%

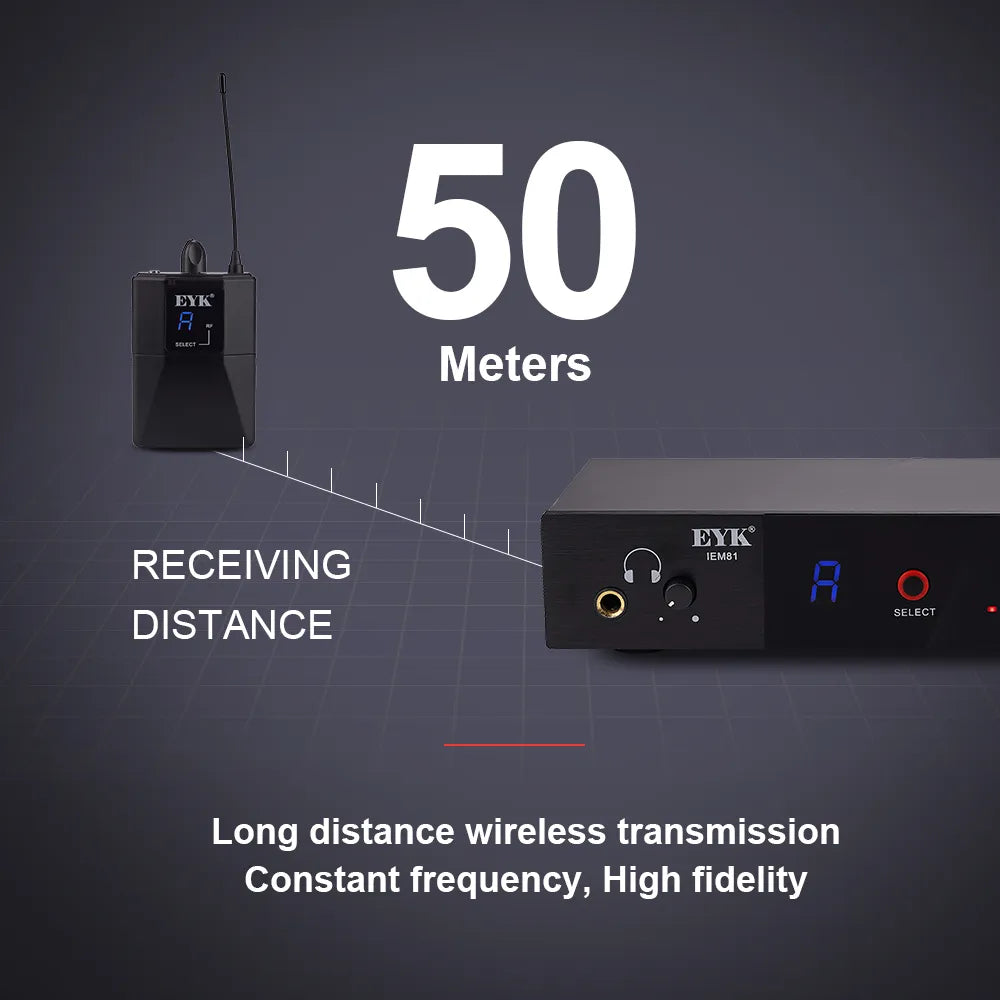

Operation Distarce: about 50m(Without obstacle)

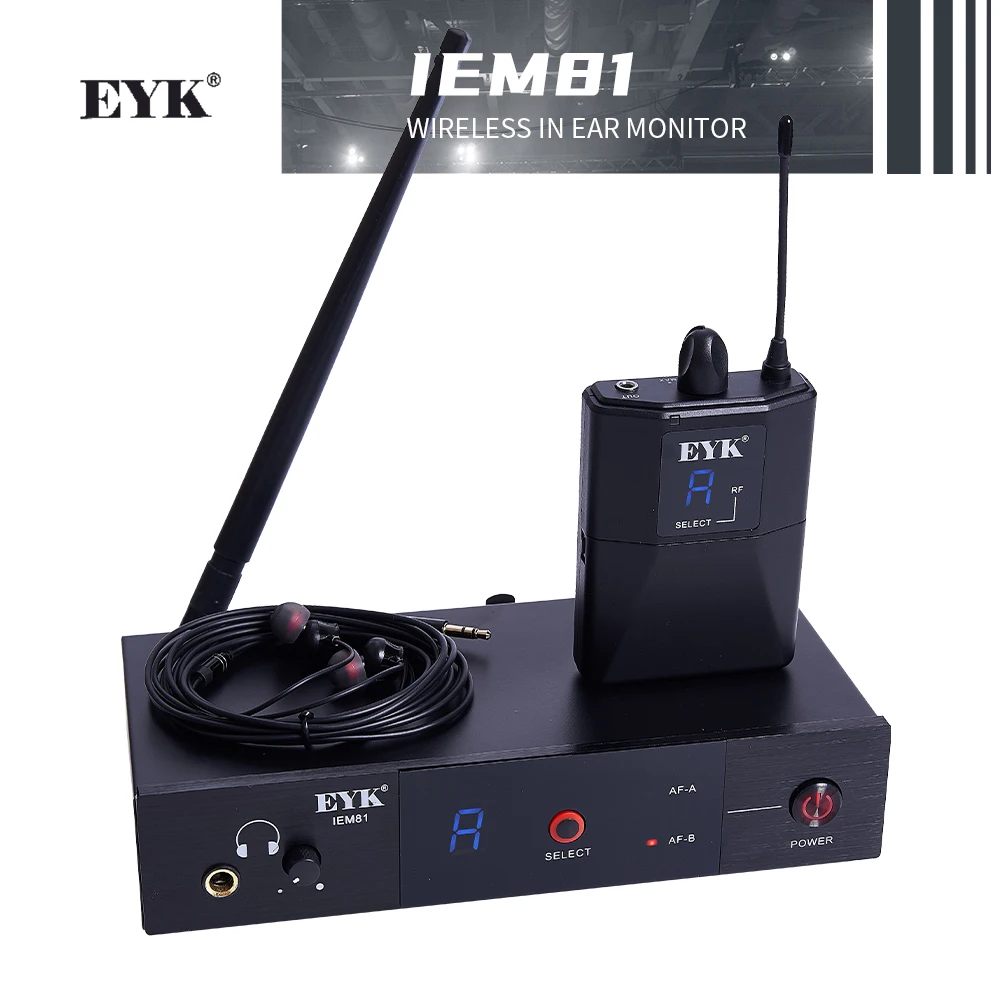

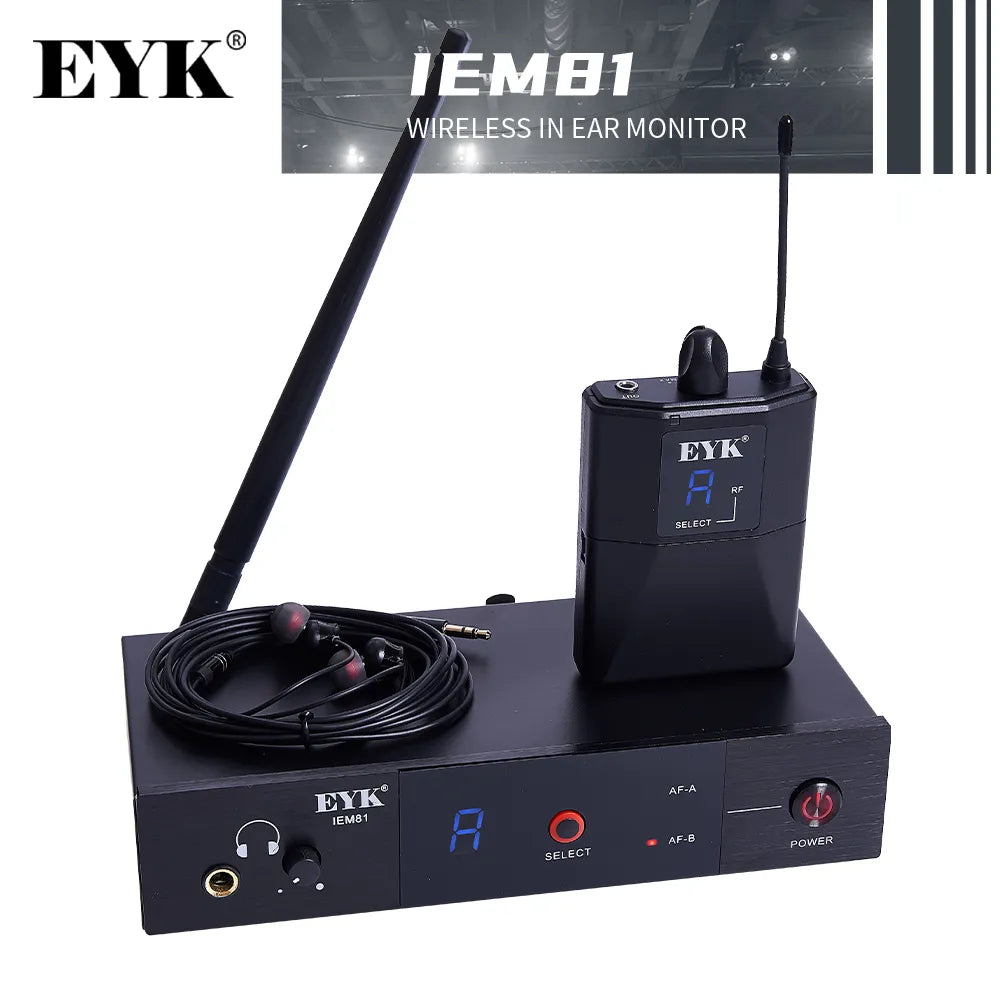

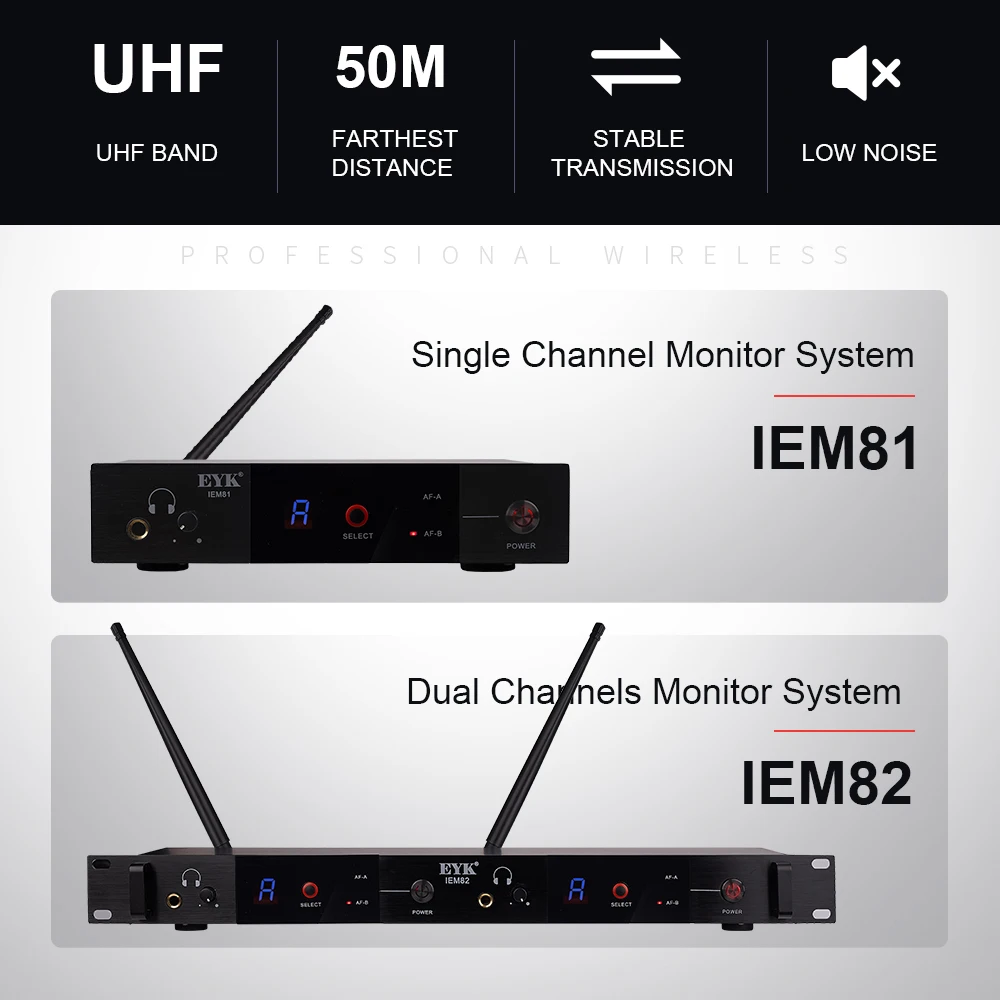

IEM-81

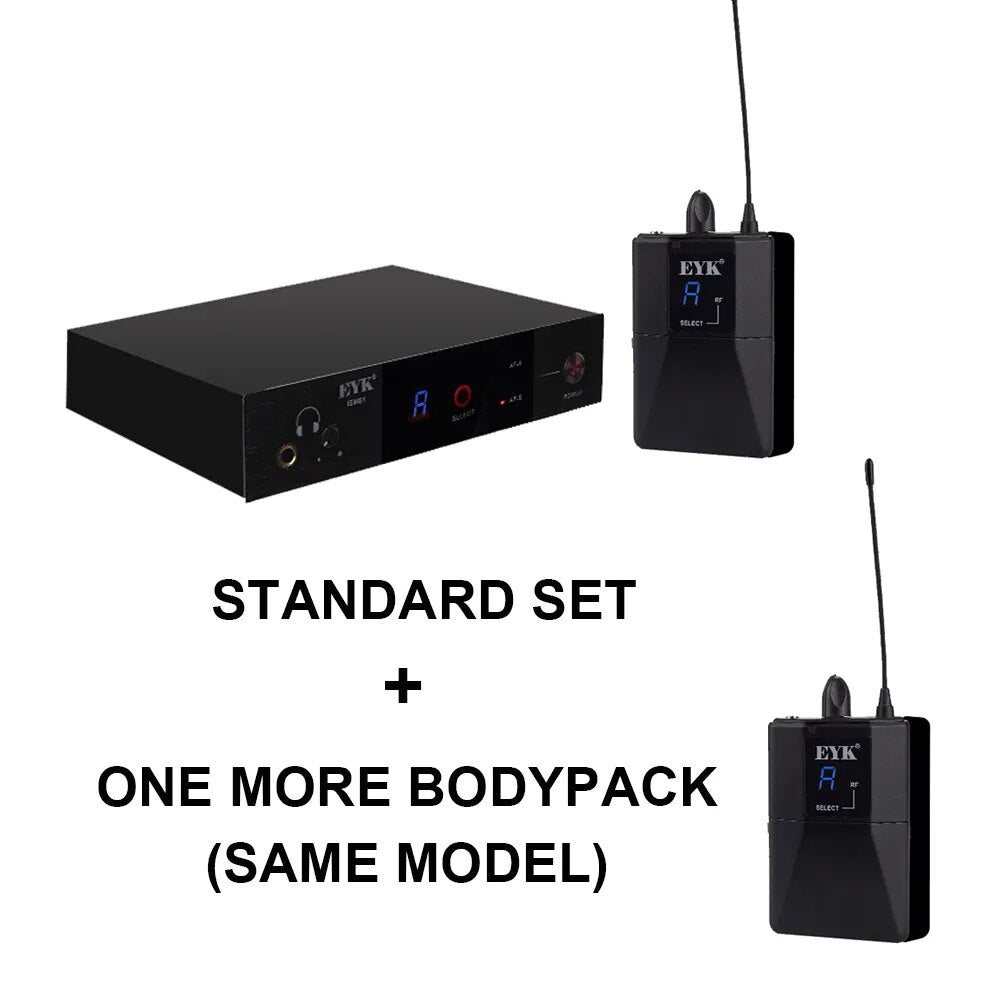

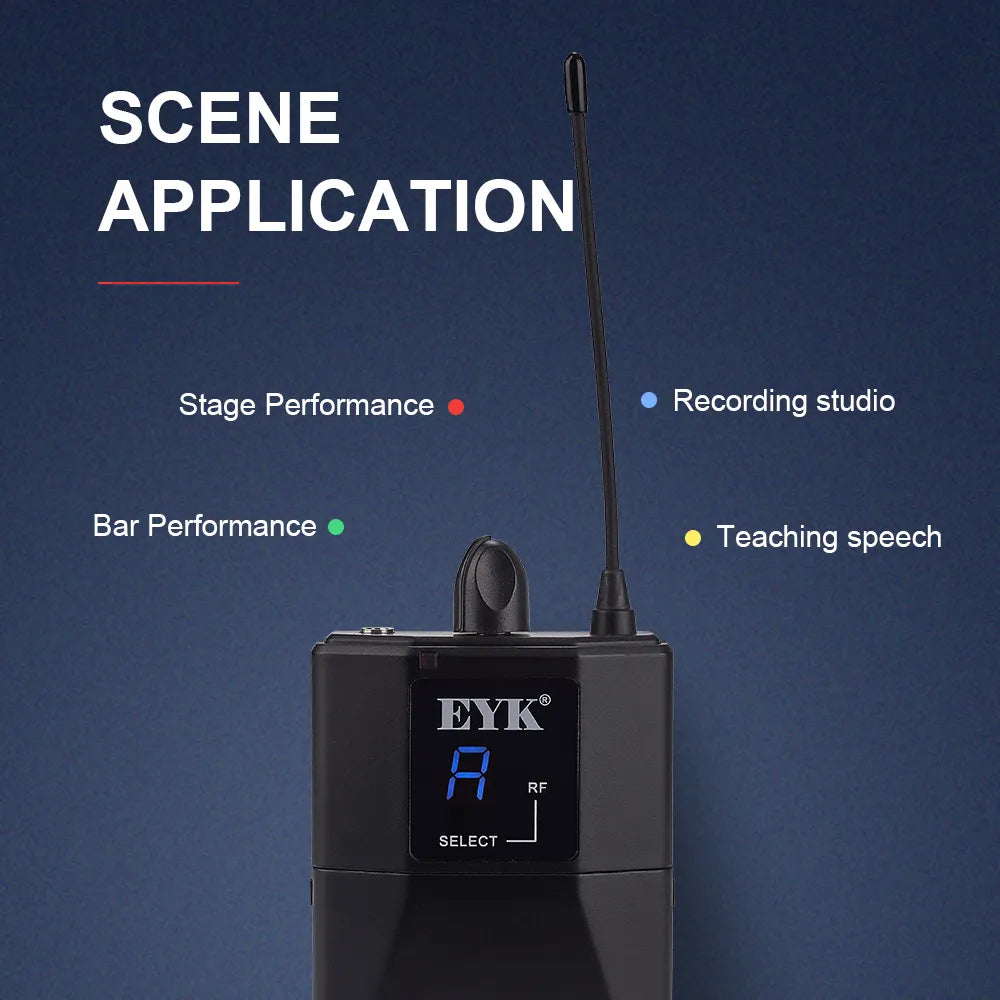

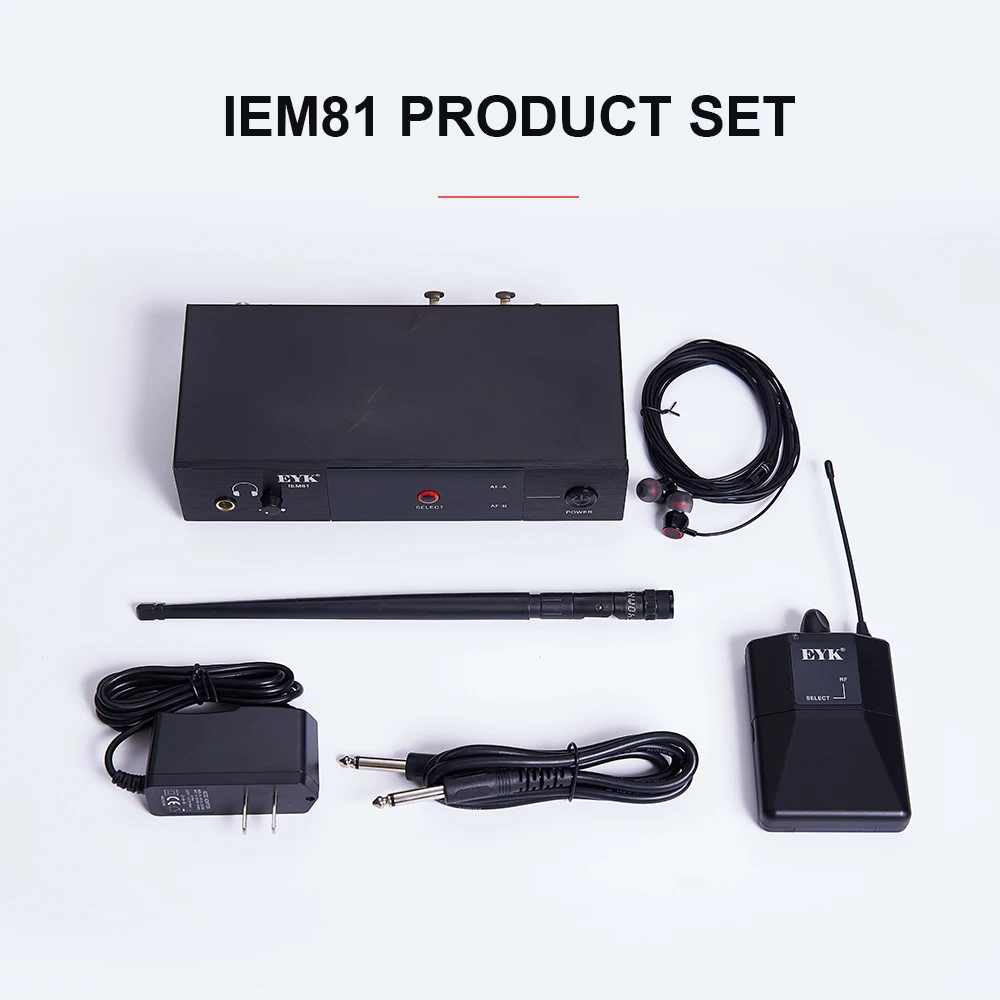

EYK new monitor system, single channel model, 16 frequencies optional. This set of products is suitable for scene monitoring such as stage performances, video recording, and live monitoring. This product can be equipped with one or more bodypacks（Same model） additionally ，in order to enable multiple terminals to monitor one channel at the same time.

Product Description：

This wireless in-ear personal monitor system is everything you need for professional in-ear monitoring in any context. It has powerful compatibility features that one transmitter can connect multiple receivers. Meet your group needs and multiple application needs. Transmitter front panel 1/4-inch monitoring has the headphone jack.Used in stage, achieve admirable listening effect.

Key Point：

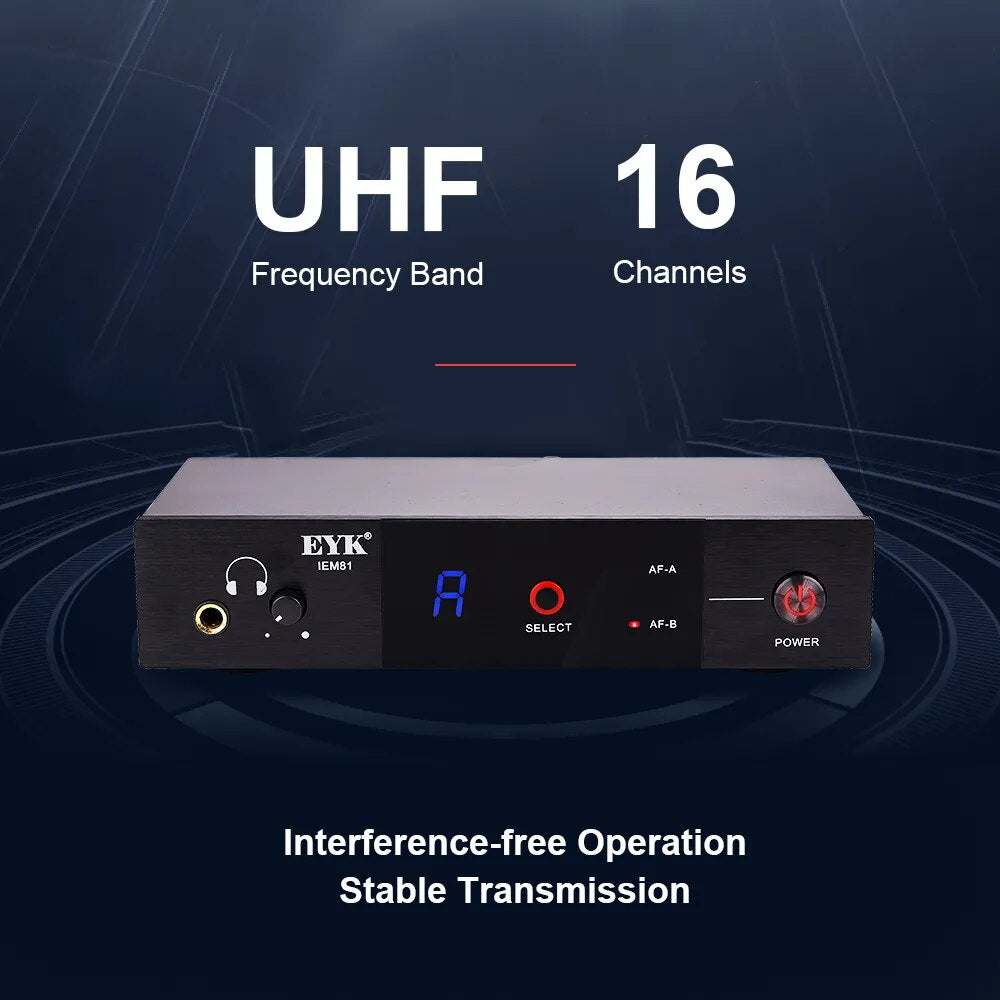

1. UHF band 600-690MHz, Among the band of 32MHz, the preset 16 frequencies can be switched at will.
2. Dynamic expansion circuit, greatly improve signal-to-noise ratio.
3. Simple LED screen display, brand new design.

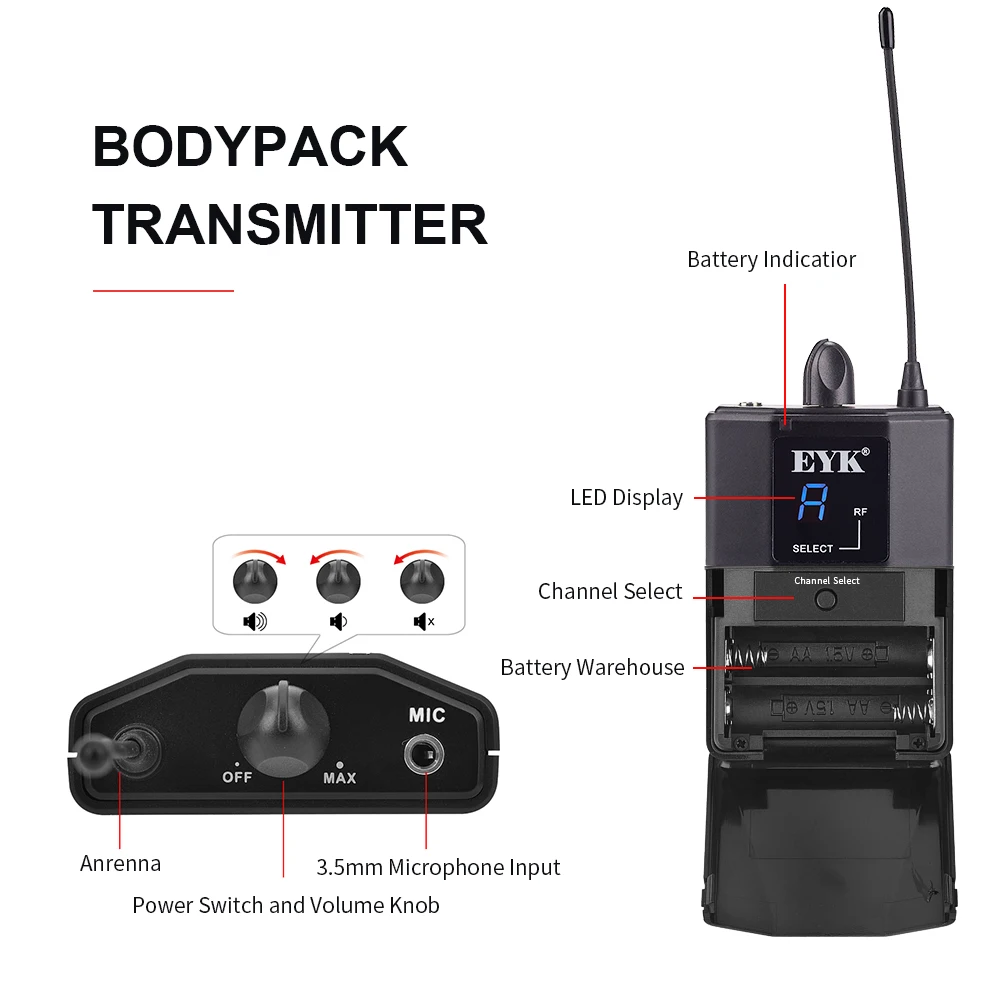

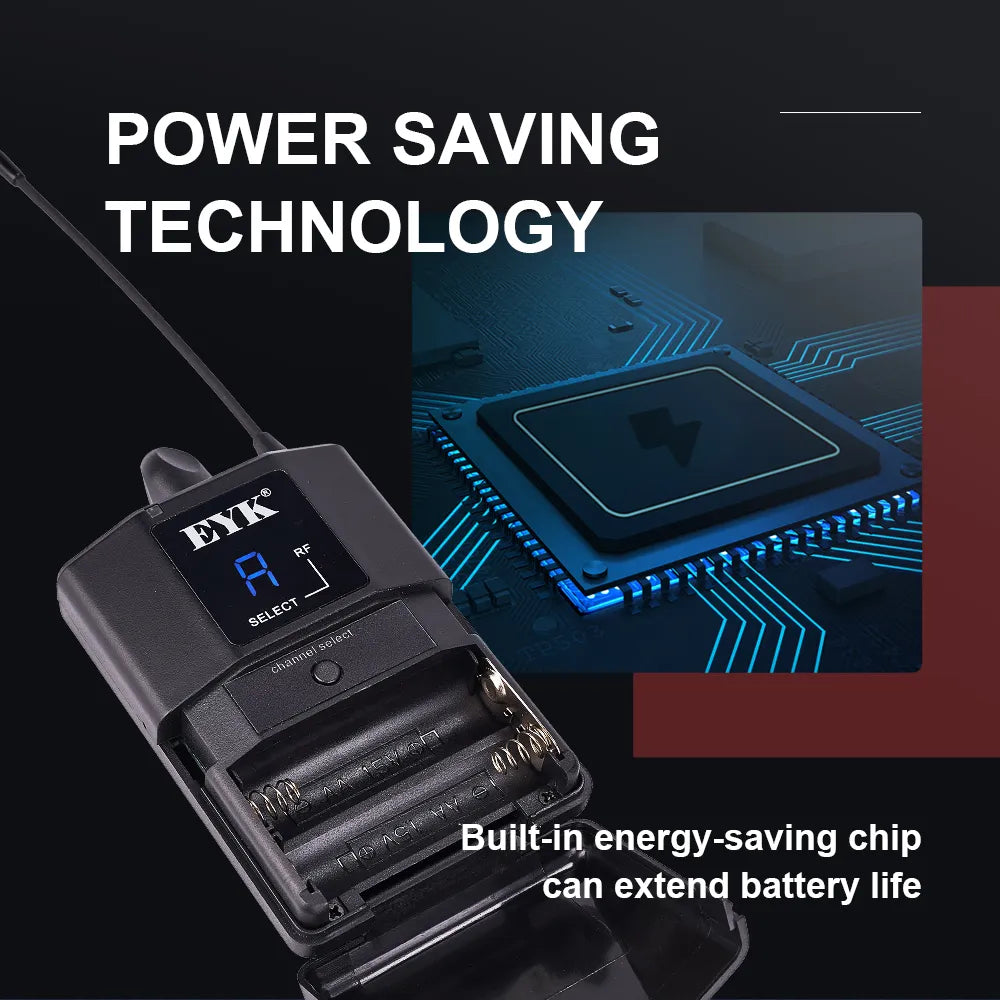

4. Receiver: Low power indicator and RF receiving indicator light It needed two 1. 5V AA batteries and efficient power circuit, long service.

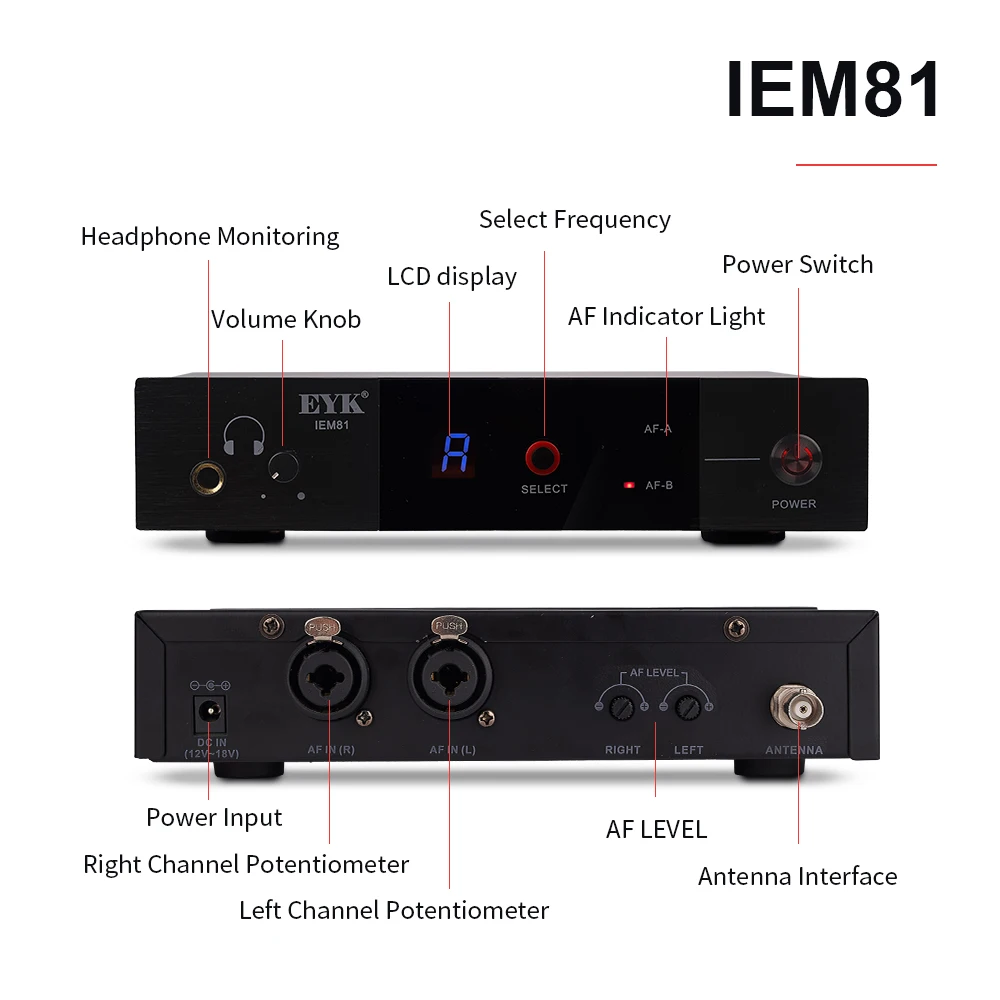

5. Transmitter: 6.35mm headphone output, AF signal indicator light, with balanced and unbalanced sharing socket.

Style: Mono
Work Frequency: 600-690MHz
Modulation Mode: Broadband FM
Channels: 16
Channel Frequency: 300KHZ
Frequency Stability: ±0.005%
Dynamic Bound: 100dB
Max Excursion: ±45KHz
Frequency Response: 60Hz-18KHz(3dB)
S/N: >105dB
T.H. D: ≤0.5%
Operation Distarce: about 50m

Receiving Machine Index:
Antenna: Hand microphone has on in built helix
Antenna Transmitter 1/4 Ware-lergh

Flagelliform Antenna
Sensitivities: 12dBuV(80dB S/N)
Sensitivitive Adjustable Rang: 12-32dBuV
Erratic Control: ≥75dB
Max Output Frequency: +10 dBV

Transmitter Index:
Antenna Receive: BNC/50Ω
Erratic Control: -60dB
Power Supply: DC12V/700mA
