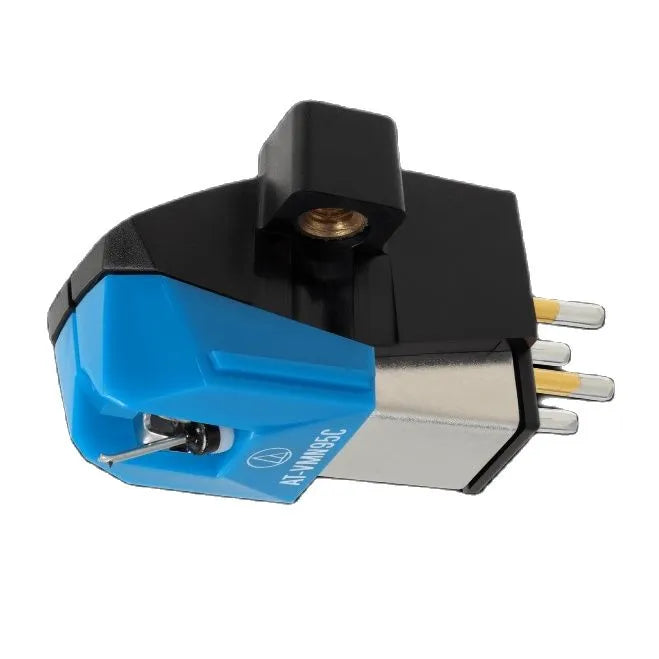

Audio Technica VM95C Moving Magnet Stereo Cartridge

Audio Technica VM95C Moving Magnet Stereo Cartridge

Regular price $40.99 USD
Regular price $0.00 USD Sale price $40.99 USD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS





Material: ABS

Type: Accessory Kits

Compatible Audio & Video Equipment Style: Player

Compatible Audio & Video Equipment Style: Professional Audio Equipment

Weight: 0.039

Package: Yes

Audio Technica VM95C



Note: Each ink cartridge needle is packaged in a transparent plastic box

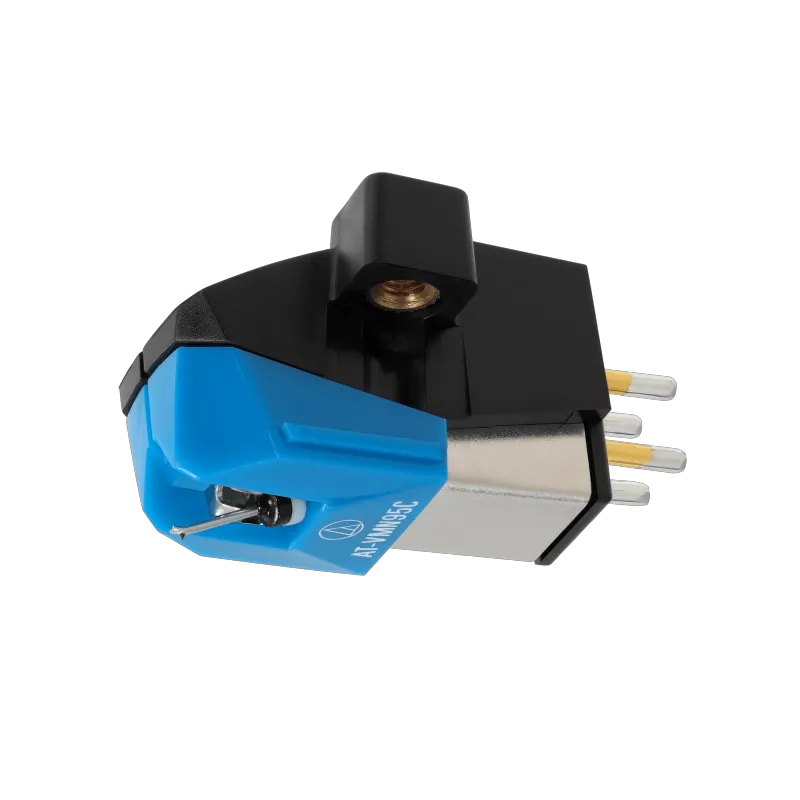

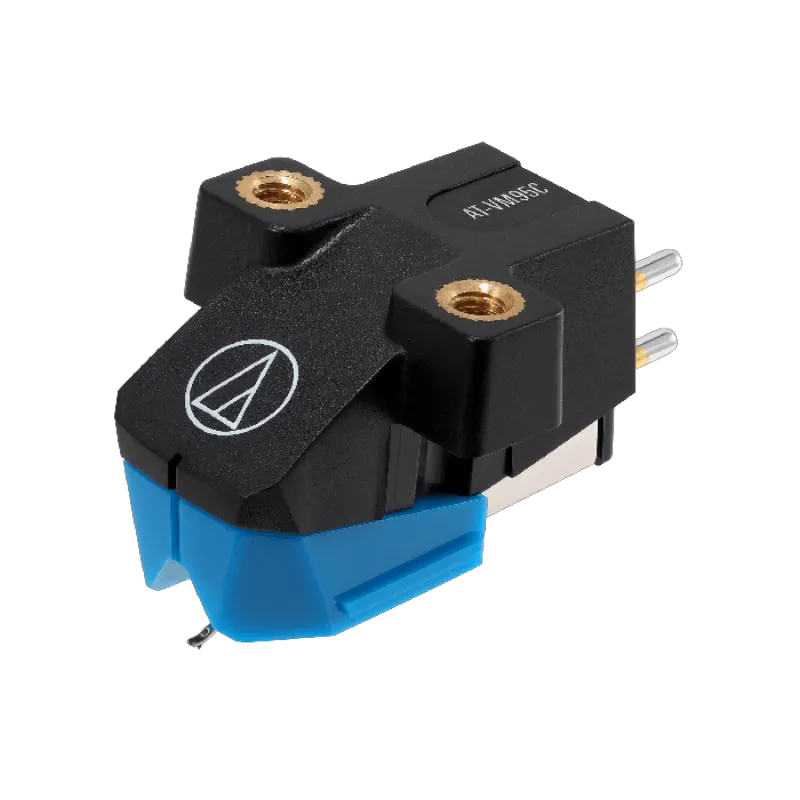

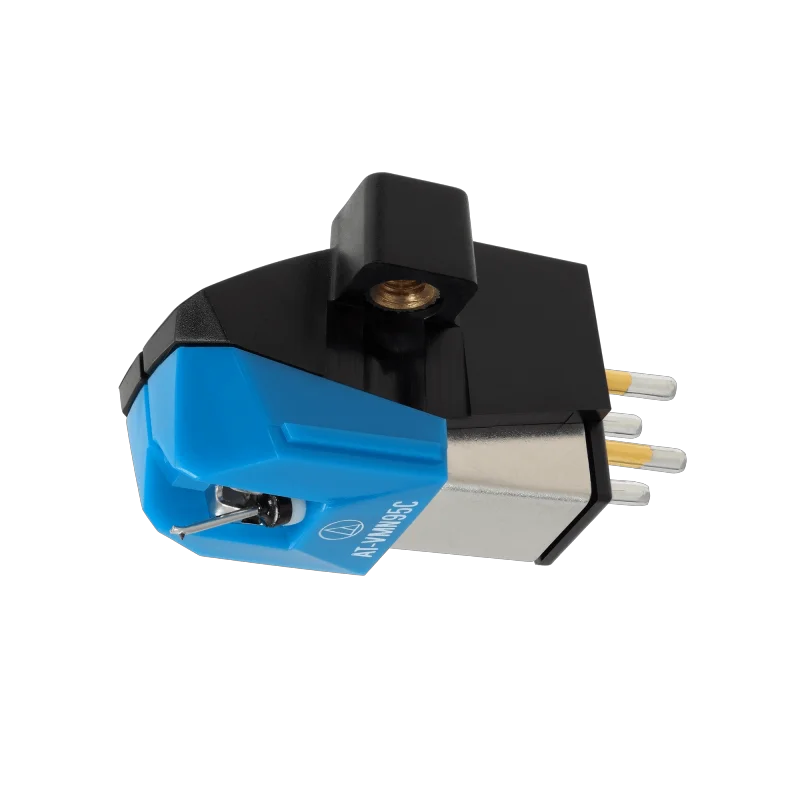

AT-VM95C

VM95 series Conical stereo cartridge

The AT-VM95C, the new Audio-Technica entry model Conical cartridge will replace the legendary AT90 Series models such as AT91, AT91R and CN5625AL

Also the AT-VM95C is a “budget” cartridge featuring a conical stylus, the compatibility in the range will allow to upgrade with any of the 4 other LP styli of the Series such as Elliptical, Elliptical Nude, Microlinear and Shibata.

  • Aluminium cantilever

  • 4.0mV output voltage

  • Compatible body with all VM95 Series stylus assemblies

  • Replacement for AT91, AT91R and CN5625AL

VM95 Series - Styli compatibility

Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

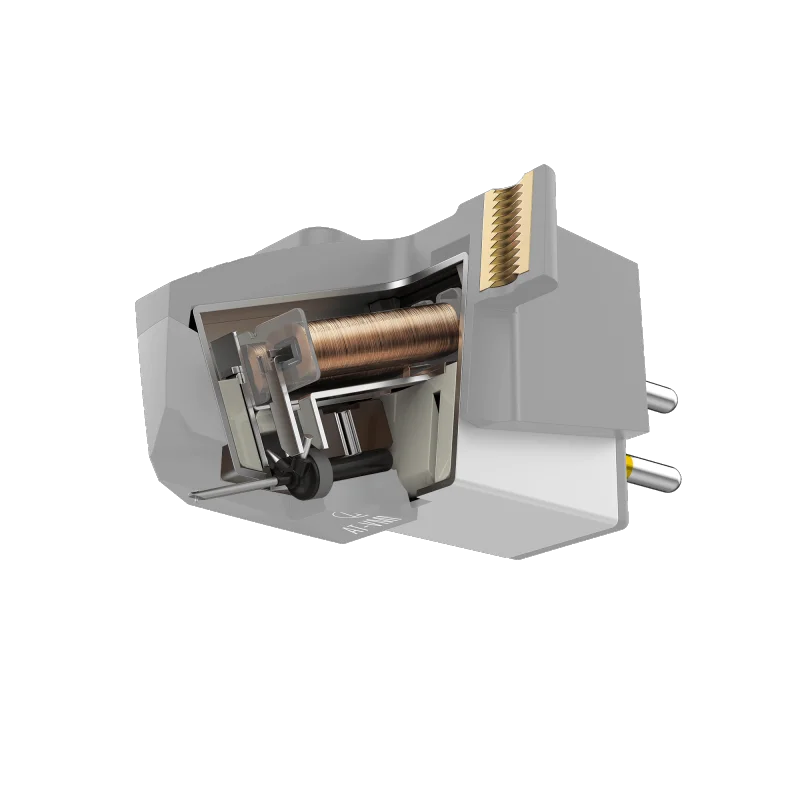

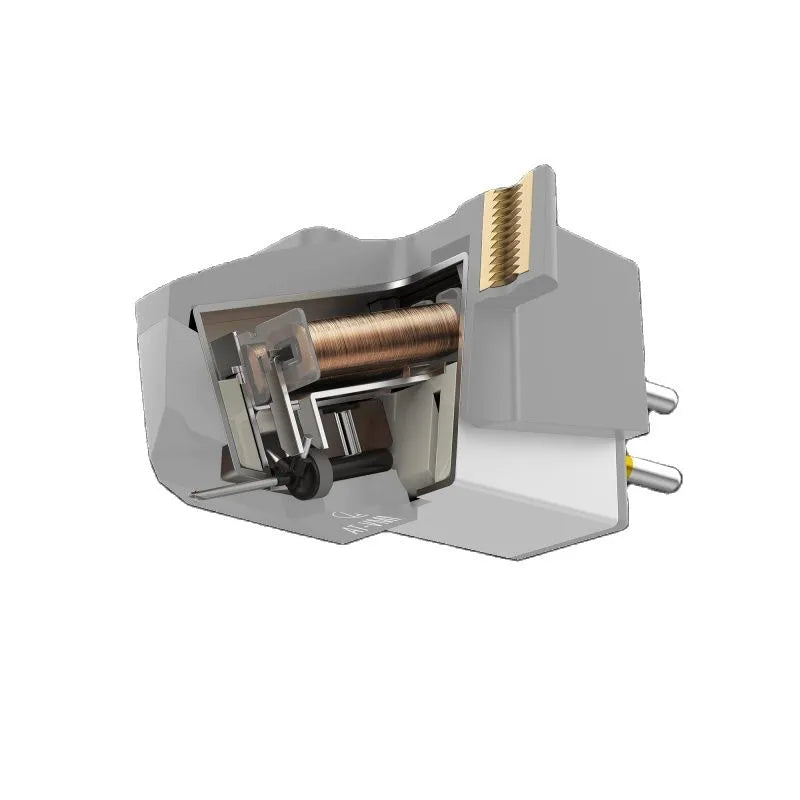

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

AT-VMN95C

AT-VMN95E

AT-VMN95EN

AT-VMN95ML

AT-VMN95SH

AT-VMN95SP

AT-VM9E Series compatibility with the AT-XP Series DJ Cartridges

  • The electromagnetic engine-body of XP-Series, is fully compatible with all replacement styli of VM95 Series and will deliver more output voltage than VM95 Series cartridge. So providing improved compatibility with phono inputs of Professional DJ Mixers.

  • VM95 Series electromagnetic engine-body is also compatible with the three replacement styli of the DJ cartridge AT-XP Series, nevertheless, the electromagnetic engine-body of XP-Series, will deliver more output voltage than VM95 Series cartridge in order to provide better compatibility with phono inputs of Professional DJ Mixers.

  • Note that typical tracking force when using XP Series styli is three grams as opposed to two grams for VM95 Series styli.

  • The suspension design and compliance of XP-Series styli have been optimized for intensive DJ’ing, including possible manual cueing and back-cueing.

  • The VM95 Series suspension design and compliances of VM95 Series have been designed for optimum audiophile reproduction.

ATN-XP7

ATN-XP5

ATN-XP3

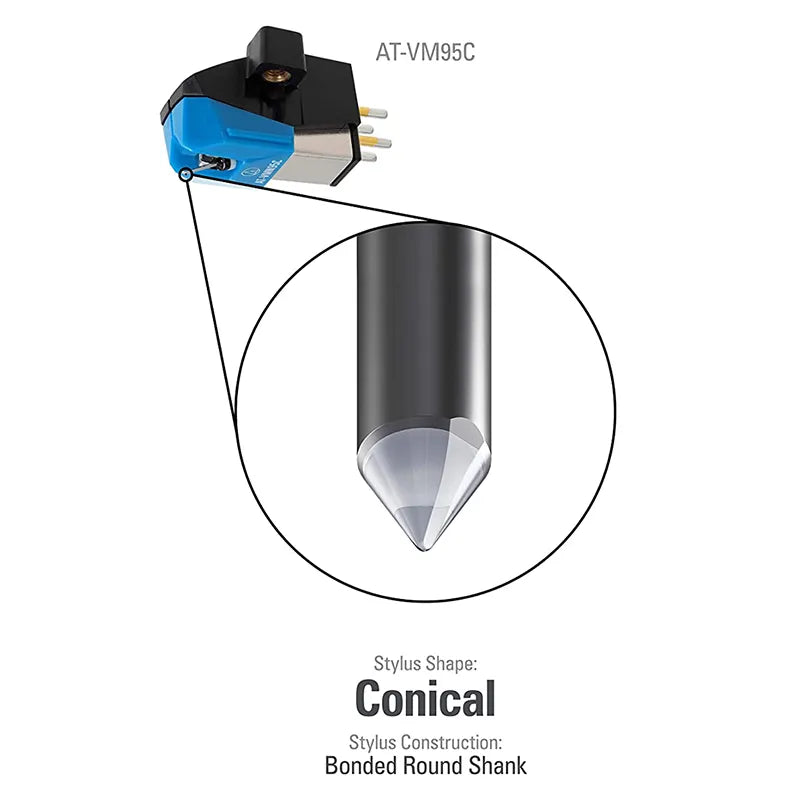

Conical Bonded Stylus

The benefit of conical styli, even if the cartridge is "lean

Note: Each ink cartridge needle is packaged in a separate transparent plastic box

Specifications

Cartridge & Stylus

Frequency Response

20 - 20,000 Hz

Channel Separation

18 dB (1 kHz)

Vertical Tracking Angle

23°

Vertical Tracking Force

1.8 to 2.2g (2.0g standard)

Stylus Construction

Bonded Round Shank

Recommended Load Impedance

47,000 Ω

Coil Impedance

3.3 kΩ (1 kHz)

DC Resistance

485 Ω

Coil Inductance

550 mH (1 kHz)

Output Voltage

4.0 mV (@ 1 kHz, 5 cm/sec)

Output Channel Balance

2.5 dB (1 kHz)

Stylus Shape

Conical

Cantilever

Aluminium Pipe

Static Compliance

17 x 10 – 6 cm / dyne

Dynamic Compliance

6.5 x 10 – 6 cm / dyne (100 Hz)

Mounting

1/2” centres

Cartridge Weight

6.1g

Dimensions

17.2 x 18.9 x 28.3 ( H x W x D mm)

Accessories Included

Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers

Model

AT-VM95C

Recommended Load Capacitance

100-200 pF

Replacement Stylus

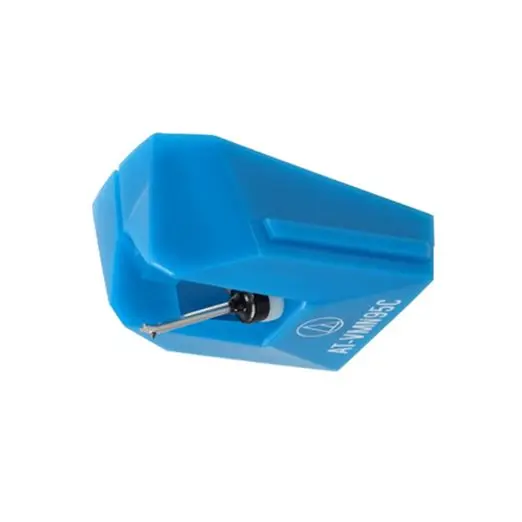

AT-VMN95C

Stylus Size

0.6 mil

Type

VM Stereo Dual Magnet

Wire Used for Coil

T.P. Copper
